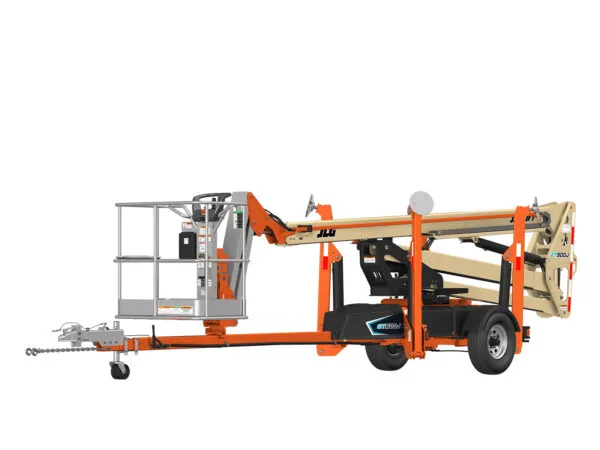

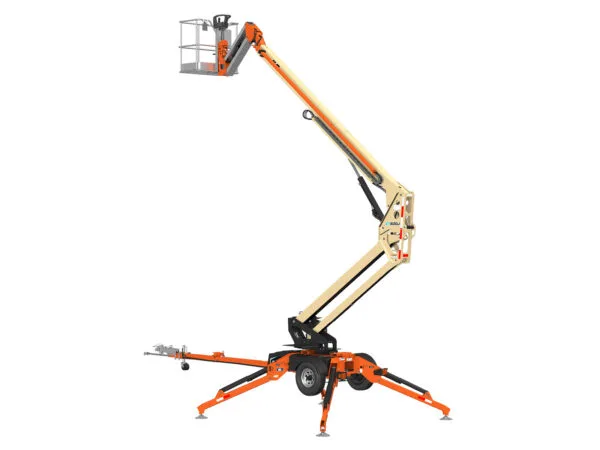

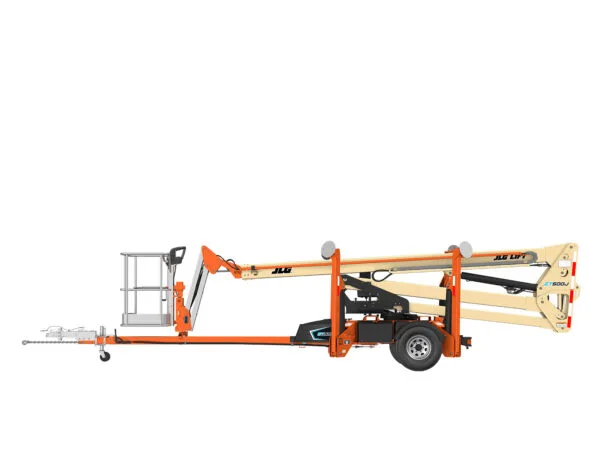

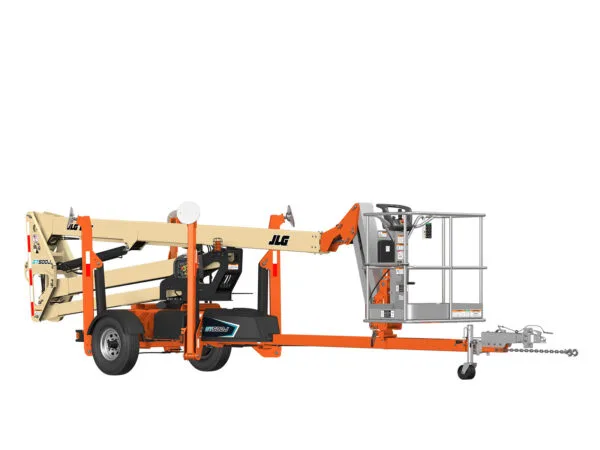

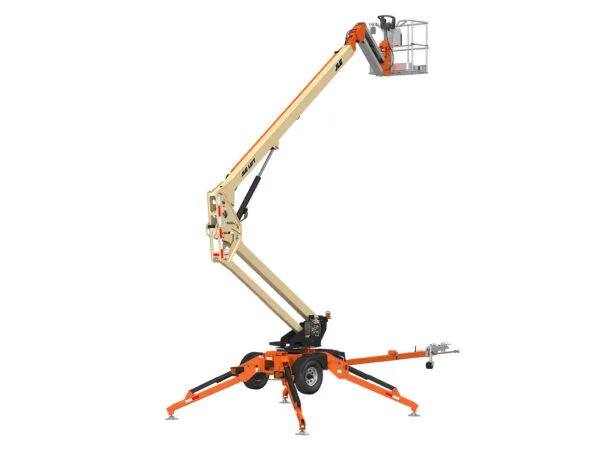

50’ Towable Articulating

Key Specs

  • Horizontal Outreach: 31 ft 6 in. / 9.6 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Height: 50 ft 1 in. / 15.25 m

Key Features

  • Peak efficiency of 4 x 6v 220 amp-hr batteries for quiet, efficient power
  • Increase productivity with standard features such as air and water lines to the platform
  • Set up with ease and get right to work with hydraulic, auto-leveling outriggers
  • Detachable platform controls provide more efficient boom positioning with one-hand operation of all boom functions
  • New standard features include a smart charger, LED tail lights, lockable hoods, dual USB port in platform and parking brake audible indicator

Power Source

  • Batteries: 4 x 6V 220 A-h

General

  • Machine Weight: 5200 lb / 2358.68 kg
  • Maximum Ground Bearing Pressure: 31 psi / 2.17 Kg/cm2

Performance

  • Jib - Range of Articulation: 130 Degrees
  • Leveling Capability: 11 Degrees
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb / 226.80 kg
  • Swing: 410 Degrees
  • Swing Type: Non-Continuous
  • Towing Speed Rating: 65 mph / 104.61 km/h

Dimensional Data

  • Machine Height: 6 ft 7 in. / 2 m
  • Machine Length: 27 ft 4 in. / 8.32 m
  • Machine Width: 5 ft 8 in. / 1.71 m
  • Outrigger Footprint Length: 12 ft 4 in. / 3.76 m
  • Outrigger Footprint Width: 12 ft 8 in. / 3.86 m
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Tire Size: 225/75 R15 Pneumatic

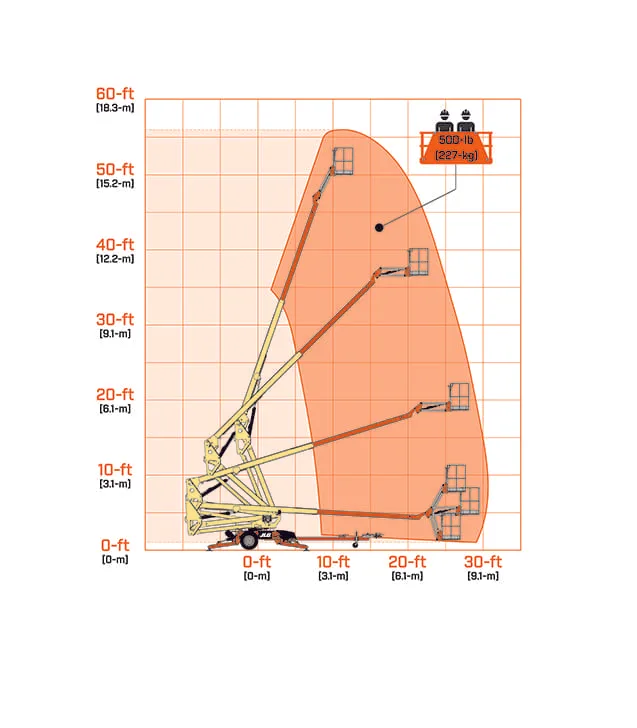

Reach Specifications

  • Horizontal Outreach: 31 ft 6 in. / 9.6 m
  • Platform Height: 50 ft 1 in. / 15.25 m

Additional information

Fuel Type

Size

Features

  • Peak efficiency: 4 x 6V 220 amp-hr batteries for quiet, efficient power
  • Increase productivity: Standard features such as air and water lines to the platform
  • Ease of setup: Hydraulic, auto-leveling outriggers
  • Detachable platform controls: More efficient boom positioning with one-hand operation of all boom functions
  • New standard features: Smart charger, LED tail lights, lockable hoods, dual USB port in platform, and parking brake audible indicator

Reach
