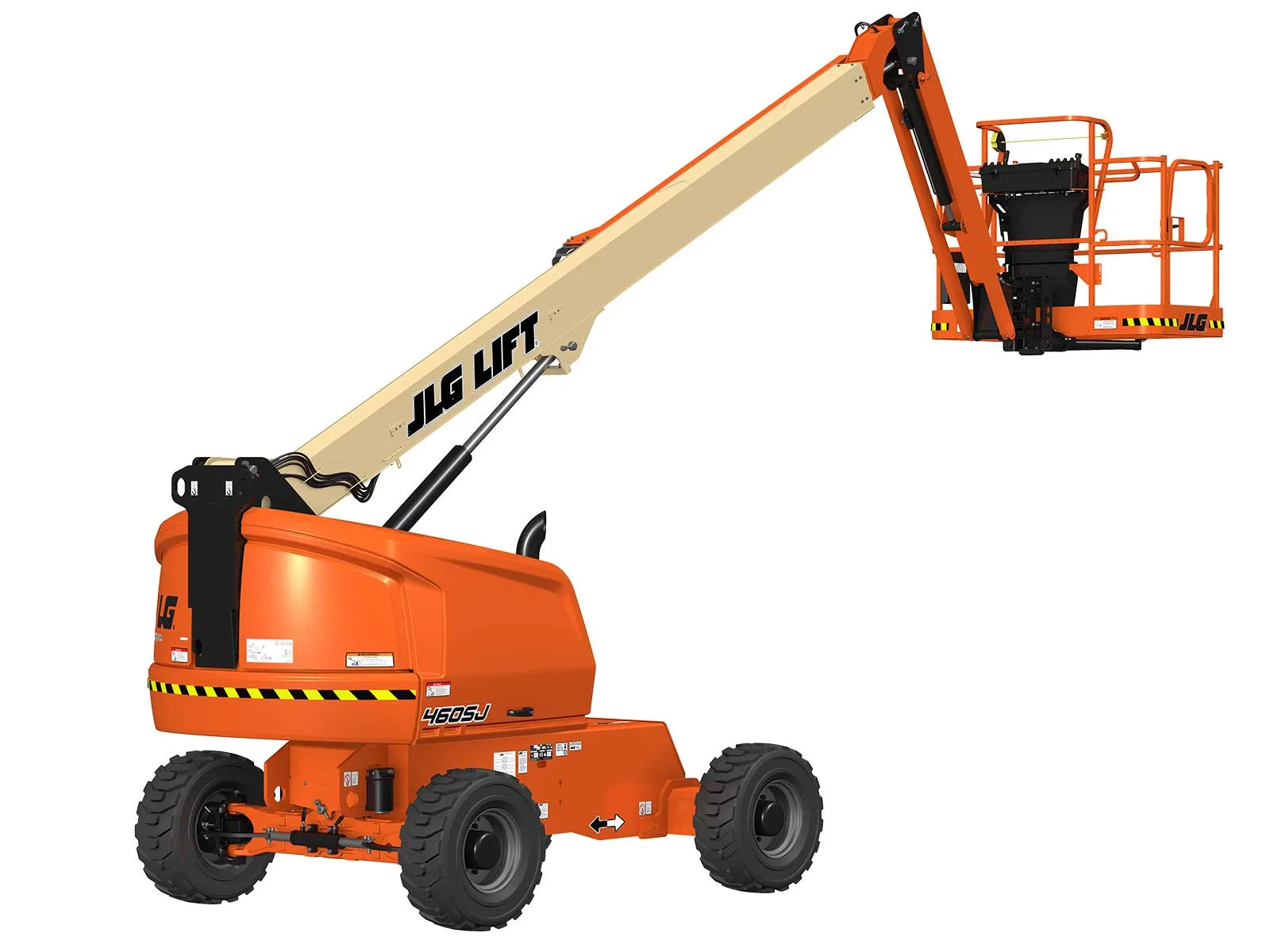

40’- 46’ Straight Boom Lift
Key Specs
- Horizontal Outreach: 39 ft / 11.89 m
- Platform Height: 46 ft / 14.02 m
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
Key Features
- Improved multifunction capability increases productivity
- New hood design provides more durability and serviceability
- Larger capacity at 600 lb
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Power Source
- Auxiliary Power:- 12 Volts DC
- Capacity - Fuel Tank:- 22 gal. / 83.28 L
- Engine Type - Diesel:- Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
- Engine Type - Dual Fuel:- GM Vortec 3000 MPFI 82 hp 61 kW
Performance
- Drive Speed - 4WD:- 4.5 mph / 7.24 km/h
- Gradeability - 4WD:- 45 %
- Platform Capacity - Unrestricted:- 600 lb / 272.16 kg
- Swing:- 360 Degrees
- Swing Type:- Continuous
- Turning Radius - Outside:- 15 ft 11 in. / 4.84 m
- Jib - Range of Articulation:- 130 Degrees
Dimensional Data
- Ground Clearance:- 1 ft / 0.31 m
- Machine Height:- 8 ft 1 in. / 2.47 m
- Machine Length:- 29 ft 3 in. / 8.91 m
- Transport Length:- 29 ft 3 in. / 8.91 m
- Machine Width:- 7 ft 7 in. / 2.31 m
- Platform Dimension:- A 3 ft / 0.91 m
- Platform Dimension:- B 8 ft / 2.44 m
- Tailswing:- 2 ft 10 in. / 0.86 m
- Tire Size:- 12 x 16.5 Foam Filled Lug Tread Tires
Reach Specifications
- Horizontal Jib Rotation:- 0 Degrees
- Horizontal Outreach:- 39 ft / 11.89 m
- Platform Height:- 46 ft / 14.02 m
General
- Capacity - Hydraulic Reservoir:- 36 gal. / 136.27 L
- Maximum Ground Bearing Pressure:- 69 psi / 4.83 Kg/cm2
- Machine Weight:- 16600 lb / 7529.63 kg
Features
- Improved multifunction capability increases productivity
- New hood design provides more durability and serviceability
- Larger capacity at 600 lb
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
