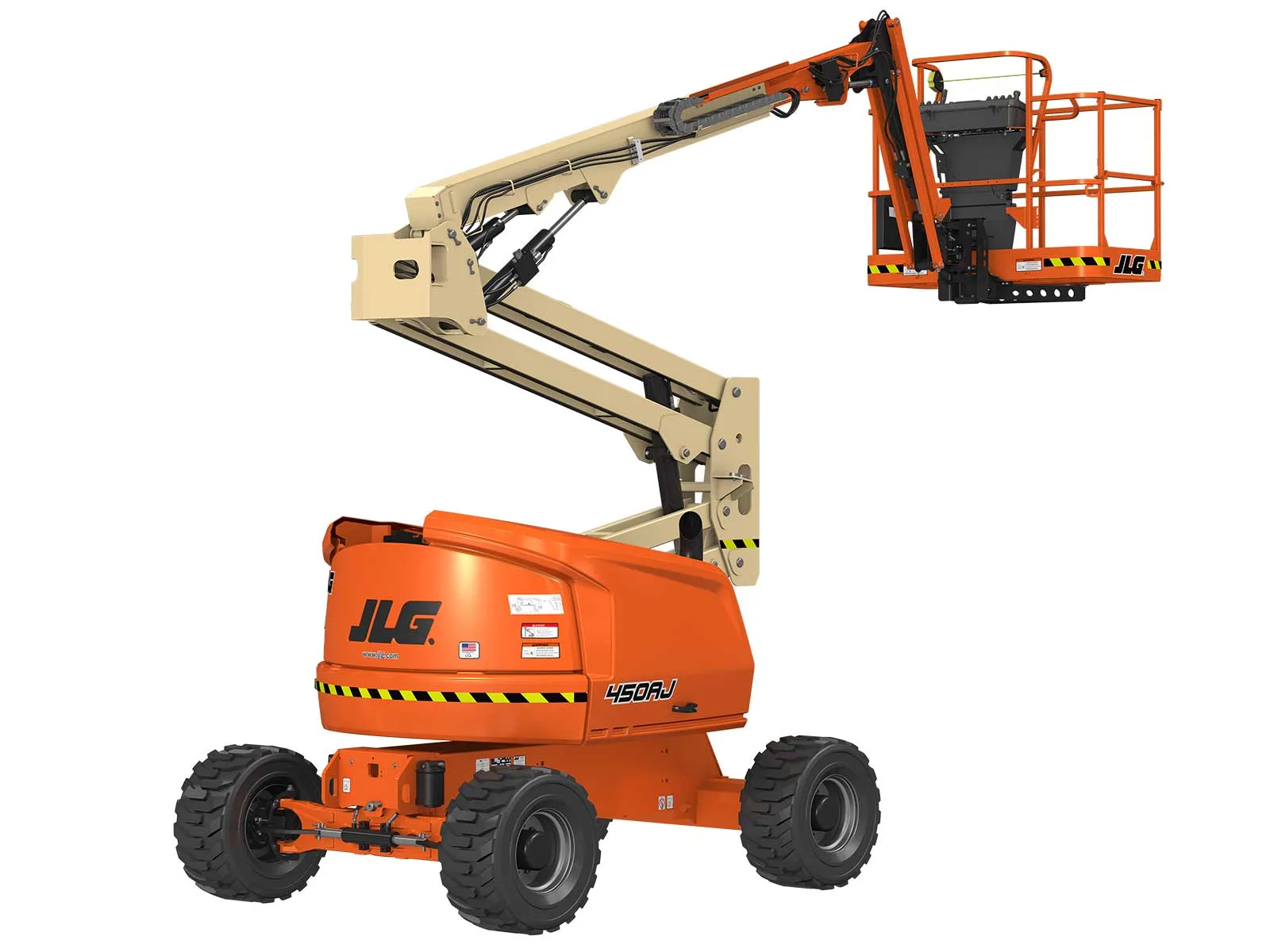

45’ Articulating Boom Lift

Power Source

• Auxiliary Power: 12 Volts DC
• Capacity - Fuel Tank: 16 gal. / 60.57 L
• Engine Type - Diesel: Deutz D2.9 L4 Tier 4 Final 49 hp
• Engine Type - Dual Fuel: Kubota DF WG2503 61 hp

Performance

• Axle Oscillation: 4 in. / 0.1 m
• Drive Speed - 4WD: 4.3 mph / 6.84 km/h
• Gradeability - 4WD: 45 %
• Platform Capacity - Unrestricted: 550 lb / 249.48 kg
• Swing: 355 Degrees
• Swing Type: Non-Continuous
• Turning Radius - Outside: 15 ft 8 in. / 4.78 m
• Jib - Range of Articulation: 144 Degrees

Dimensional Data

• Ground Clearance: 1 ft 4 in. / 0.42 m
• Machine Height: 7 ft 5 in. / 2.27 m
• Machine Length: 21 ft 7 in. / 6.58 m
• Transport Length: 21 ft 7 in. / 6.58 m
• Machine Width: 7 ft 9 in. / 2.35 m
• Platform Dimension A: 2 ft 6 in. / 0.76 m
• Platform Dimension B: 6 ft / 1.83 m
• Tailswing: 0 in. / 0 m
• Tire Size: 33/1550 x 16.5 Foam Filled Lug Tread

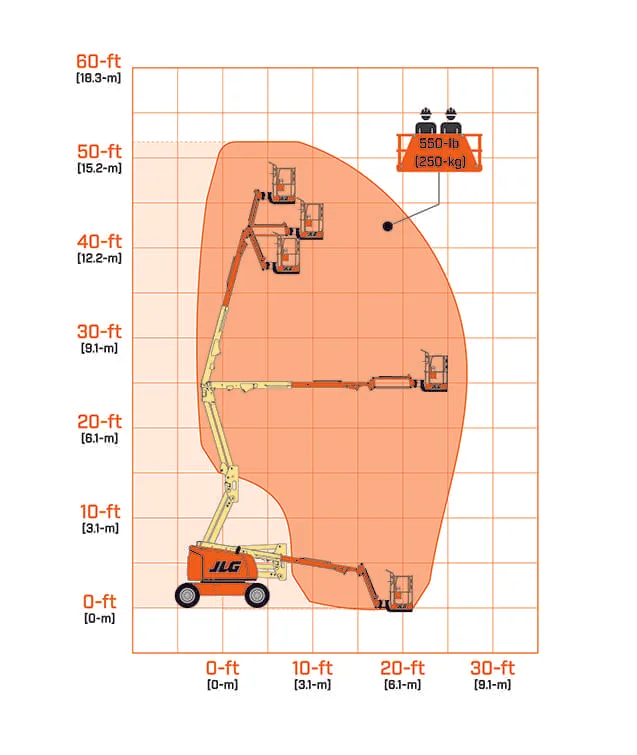

Reach Specifications

• Horizontal Outreach: 25 ft / 7.62 m
• Platform Height: 45 ft / 13.72 m
• Up and Over Height: 20 ft 8 in. / 6.3 m

General

• Capacity - Hydraulic Reservoir: 15 gal. / 56.78 L
• Maximum Ground Bearing Pressure: 48 psi / 3.36 Kg/cm2
• Machine Weight: 14150 lb / 6418.33 kg
