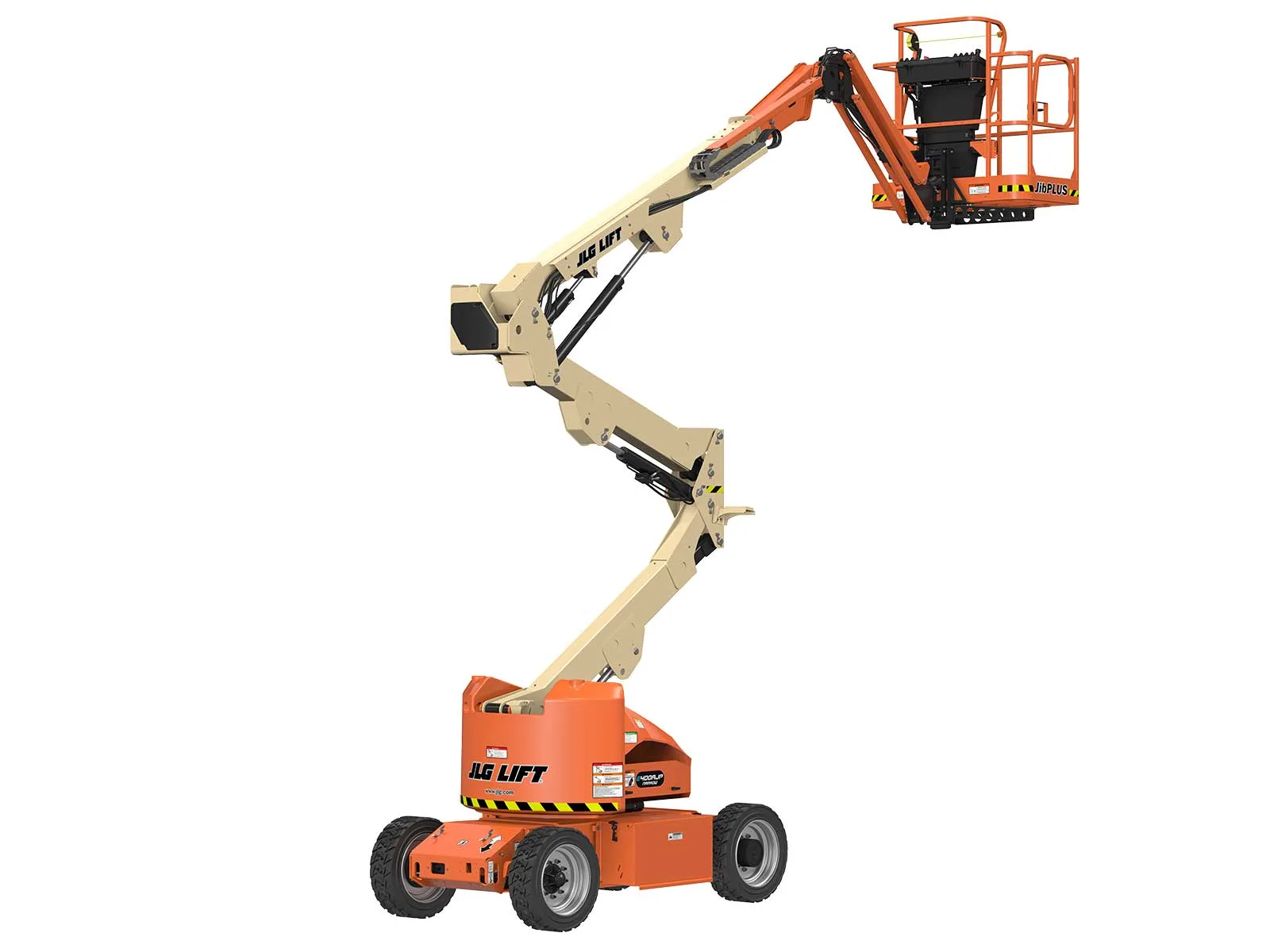

40’ Electric Articulating Boom Lift
Key Specs
- Platform Height: 40 ft / 12.19 m
- Machine Width: 4 ft 11 in. / 1.5 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
Power Source
- Batteries: 8 x 6V, 370 A-h
- Electrical System: 48 Volts DC
Performance
- Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
- Gradeability - 2WD: 30%
- Platform Capacity: 500 lb / 226.80 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Swing: 360 Degrees
- Swing Type: Non-Continuous
- Turning Radius - Outside: 10 ft 4 in. / 3.15 m
- Jib - Range of Articulation: 144 Degrees
Dimensional Data
- Ground Clearance: 5 in. / 0.13 m
- Machine Height: 6 ft 6 in. / 1.97 m
- Machine Length: 22 ft / 6.71 m
- Machine Width: 4 ft 11 in. / 1.5 m
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 4 ft / 1.22 m
- Tailswing: 4 in. / 0.1 m
- Tire Size: 22 x 6 x 17.05 Non-marking (F), 25 x 7 x 12 Non-marking (R)
- Wheelbase: 6 ft 7 in. / 2.01 m
Reach Specifications
- Horizontal Jib Rotation: 180 Degrees
- Horizontal Outreach: 22 ft 5 in. / 6.83 m
- Platform Height: 40 ft / 12.19 m
- Up and Over Height: 21 ft 6 in. / 6.55 m
General
- Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
- Machine Weight: 14,900 lb / 6,758.53 kg
Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Also available – E400AN model
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
