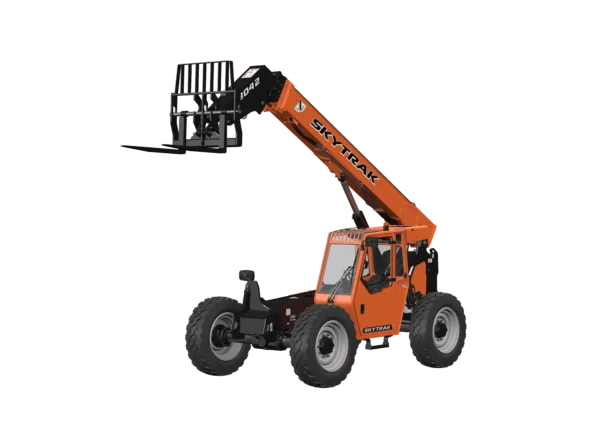

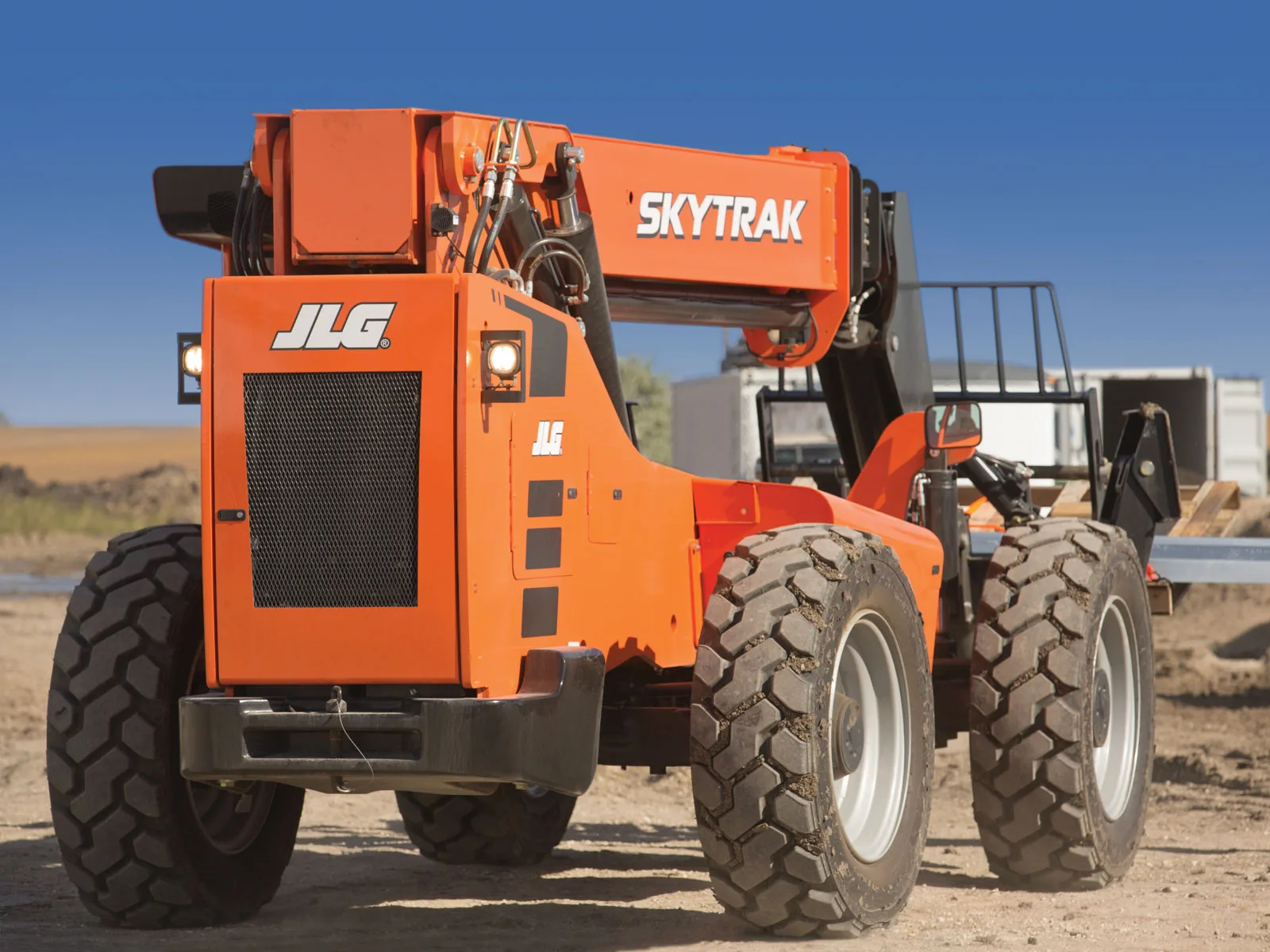

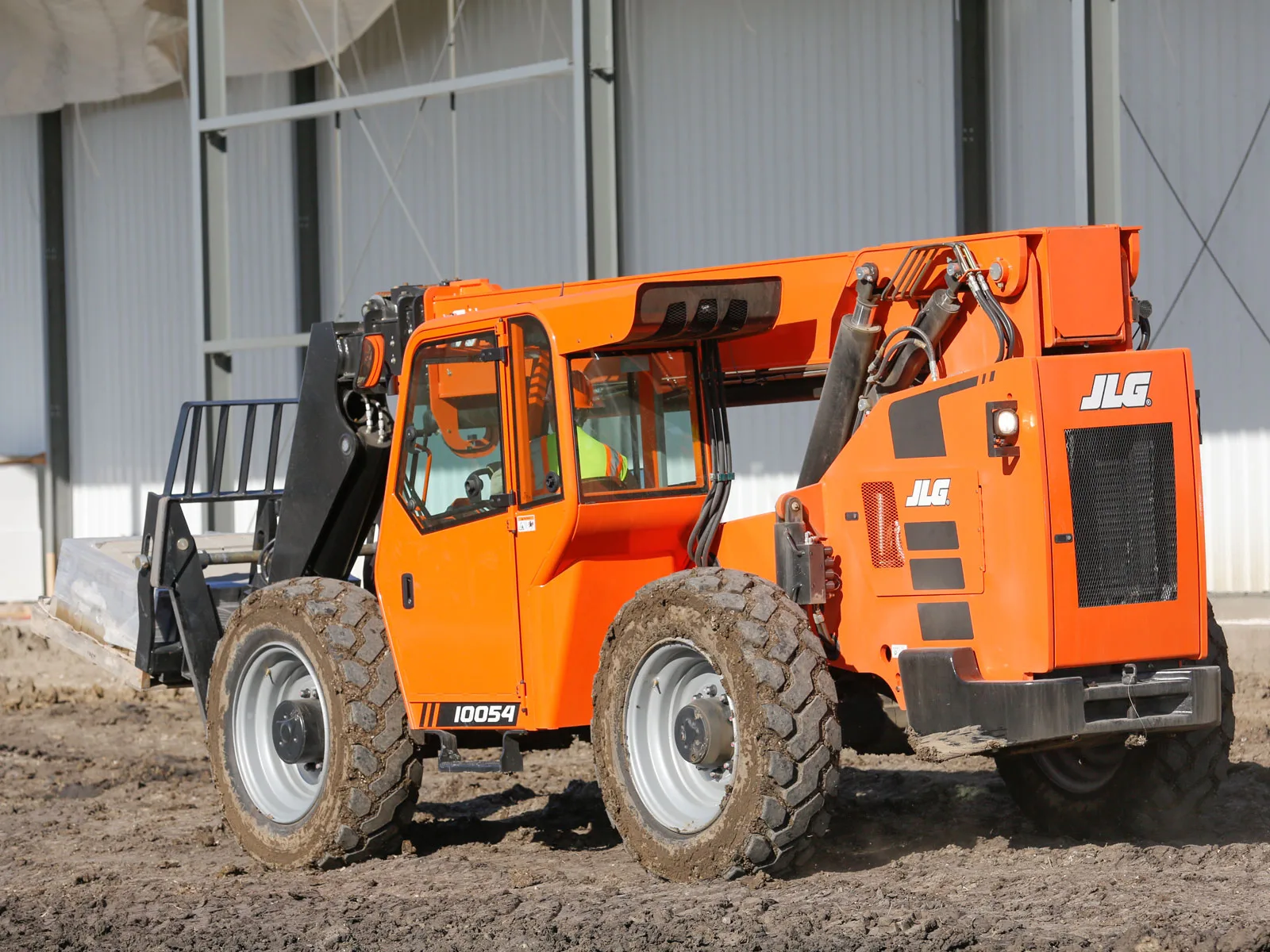

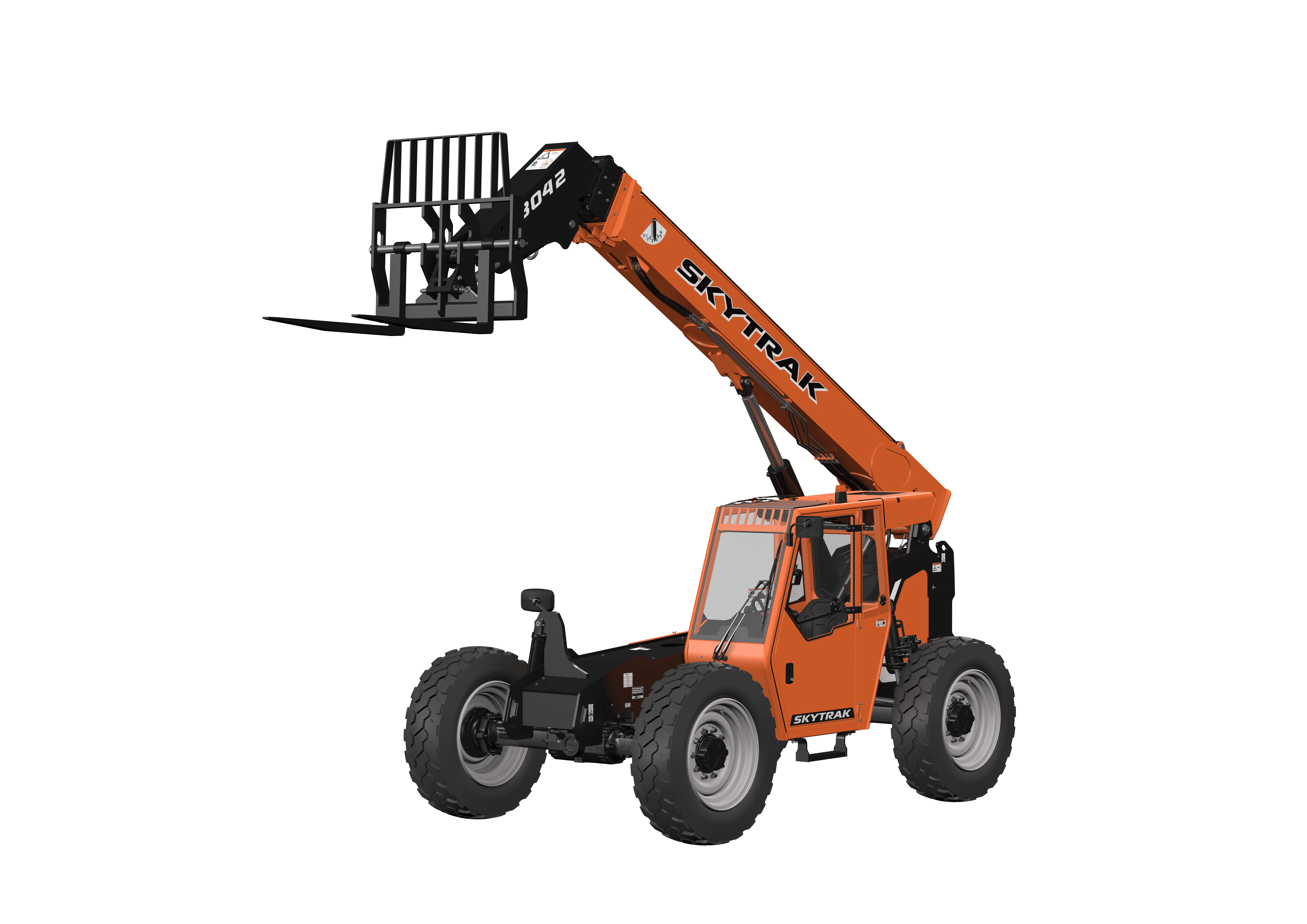

Telehandler 10k 54’

Performance

• Drawbar Pull: 24,500 lb / 11,113.01 kg
• Frame Leveling: 10 Degrees

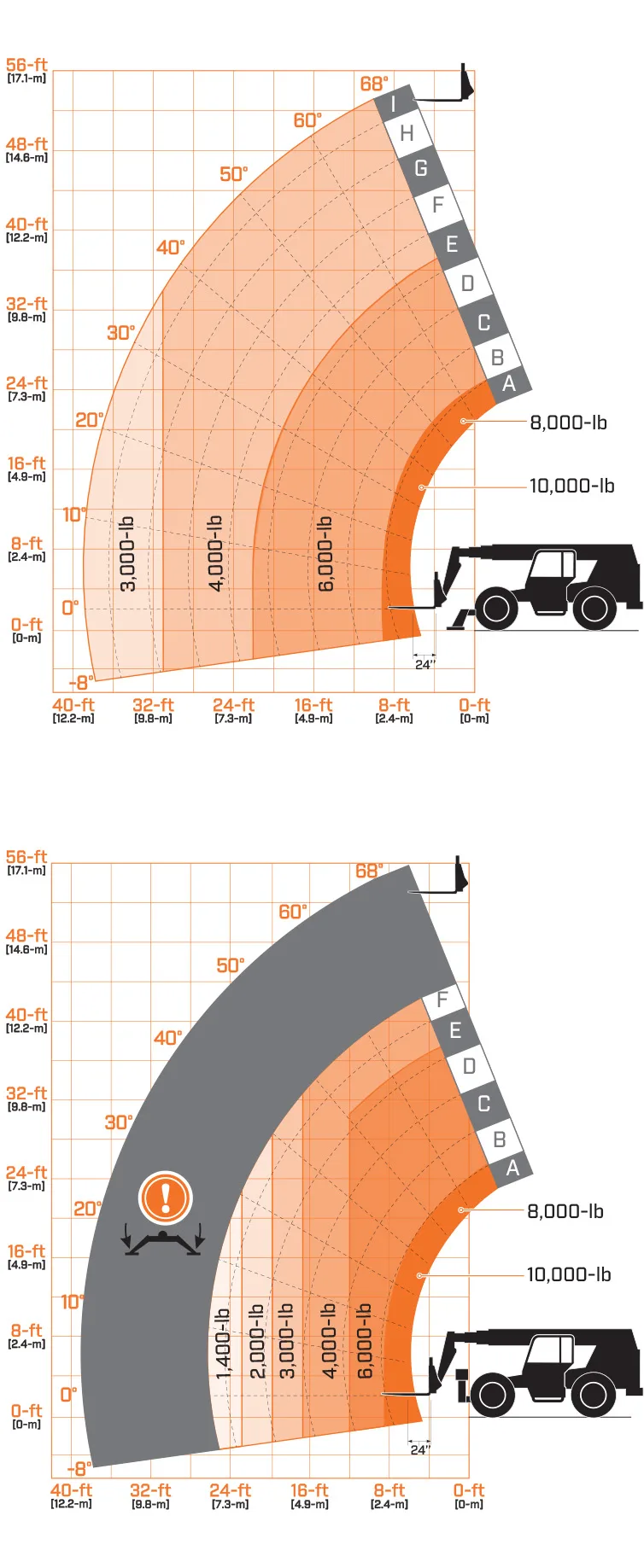

• Outriggers Up Lift Capacity Full Height: 4,000 lb / 1,814.37 kg
• Outriggers Up Lift Capacity Full Reach: 1,400 lb / 635.03 kg
• Load Center: 2 ft / 0.61 m
• Maximum Lift Capacity: 10,000 lb / 4,535.92 kg
• Outriggers Up Max Lift Height: 53 ft 2 in. / 16.21 m
• Outriggers Up Max Forward Reach: 38 ft 9 in. / 11.81 m
• Lift Capacity at Full Height: 4,000 lb / 1,814.37 kg
• Lift Capacity at Max Reach: 3,000 lb / 1,360.78 kg
• Maximum Reach: 38 ft 9 in. / 11.81 m
• Maximum Lift Height: 53 ft 2 in. / 16.21 m
• Outriggers or Stabilizers: Yes
• Outside Turning Radius: 13 ft 9 in. / 4.19 m
• Speed - Maximum Lift: 16.4 sec.
• Speed - Maximum Lower: 14.7 sec.
• Speed - Maximum Telescope In: 15.9 sec.
• Speed - Maximum Telescope Out: 17.6 sec.
• Speed - Maximum Travel: 20 mph / 32.19 km/h

Dimensional Data

• Ground Clearance: 1 ft 6 in. / 0.46 m
• Machine Height: 8 ft 4 in. / 2.54 m
• Machine Length: 21 ft / 6.4 m
• Machine Width: 8 ft 6 in. / 2.59 m
• Tire Size: 400/75-28
• Wheelbase: 10 ft / 3.04 m

Power Source

• Capacity - Fuel Tank: 35 gal. / 132.49 L
• Engine Horsepower: 110 hp / 82.06 kW
• Engine Manufacturer: Cummins
• Engine Model: QSF3.8L Tier 4 Final
• Maximum Engine RPM: 1,500 rpm

General

• Axle-Front: High Bias, Limited Slip
• Axle-Rear: Oscillating
• Function Pump Type: Var Load Sensing Piston
• Operating Vehicle Weight: 28,200 lb / 12,791.30 kg
• Service Brake Type: Wet Multi-Disc
• Transmission - Nr Forward Gears Standard: 4
• Transmission - Nr Reverse Gears: 3
• Transmission Type: Powershift
