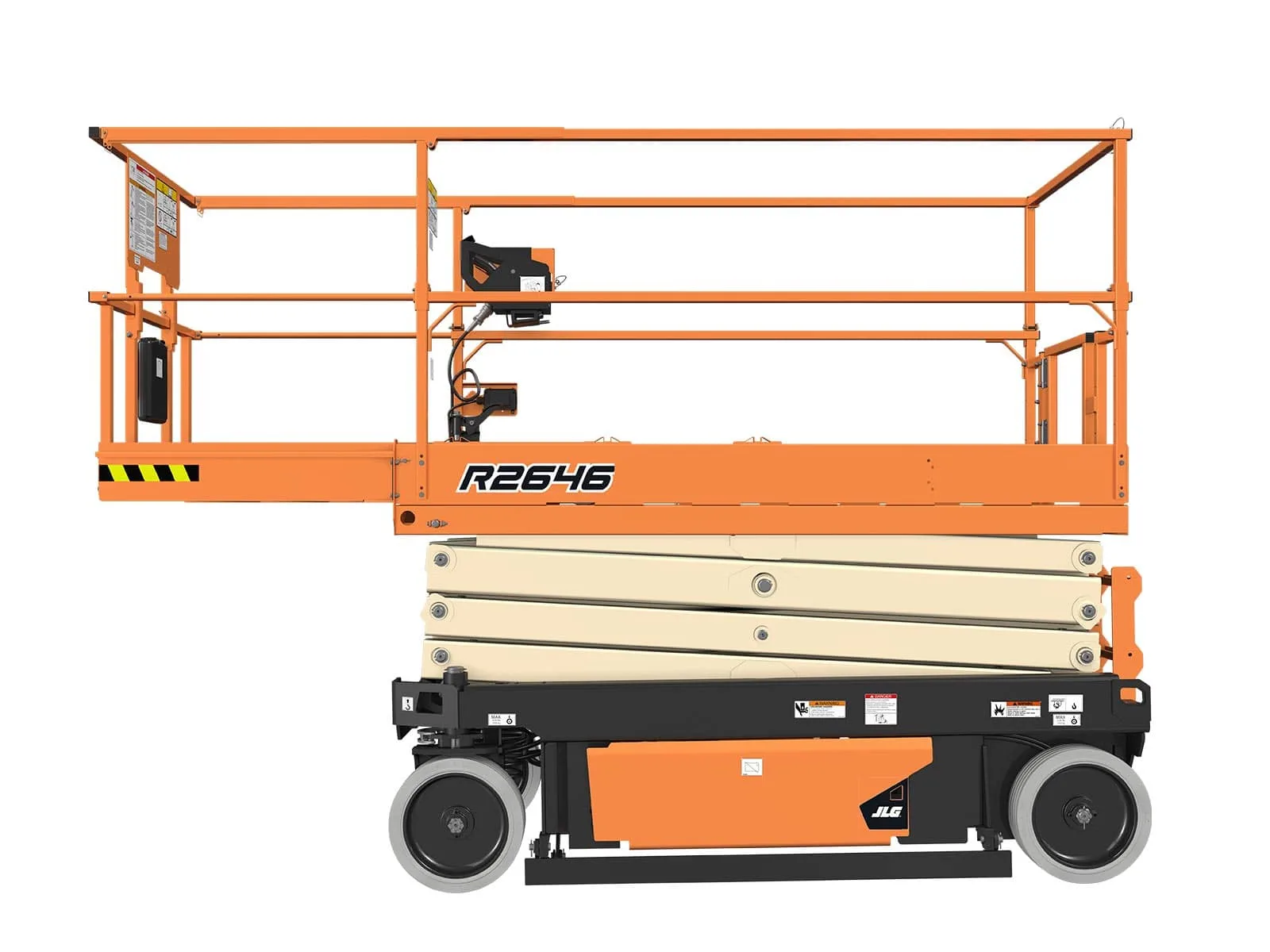

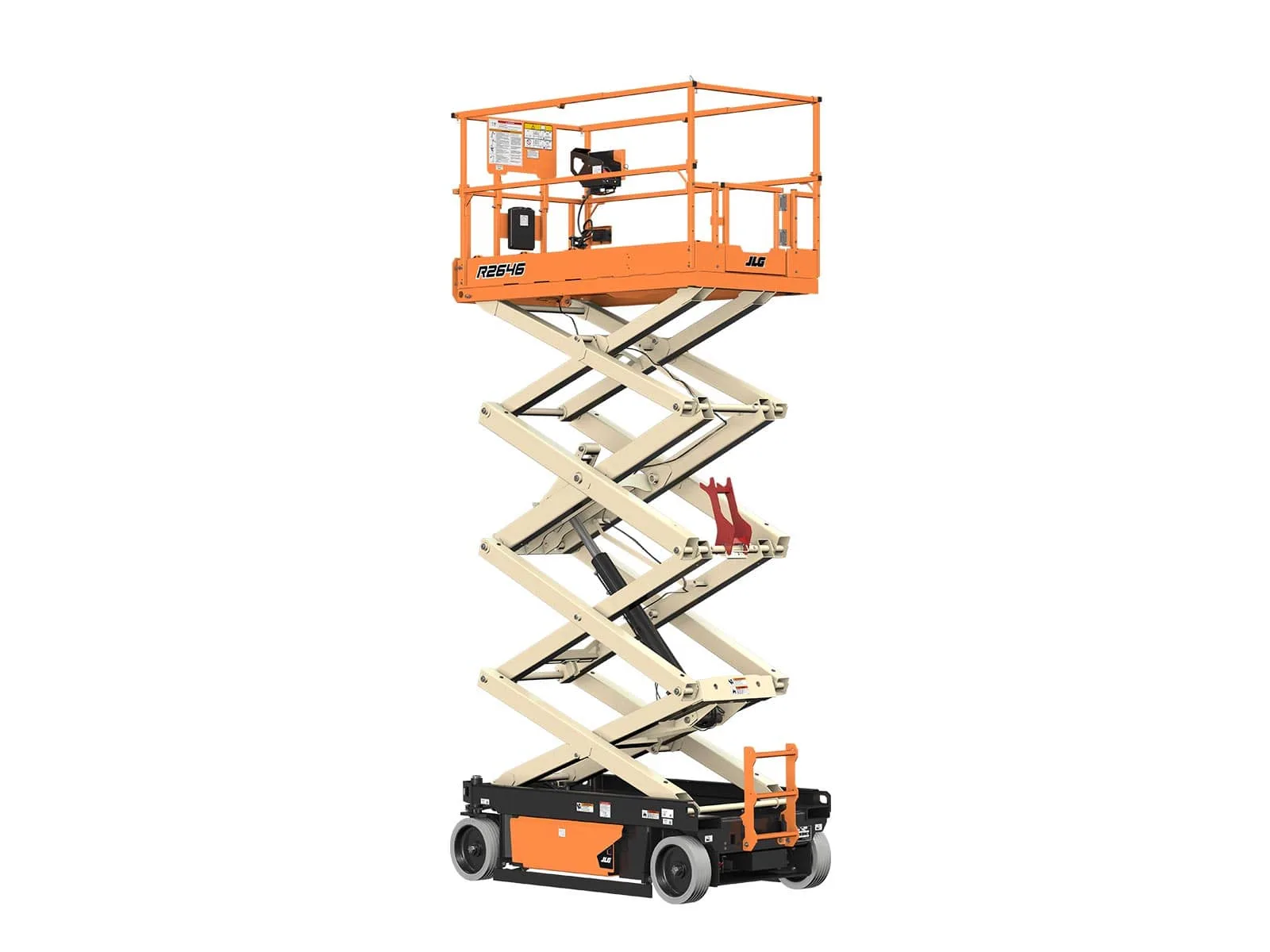

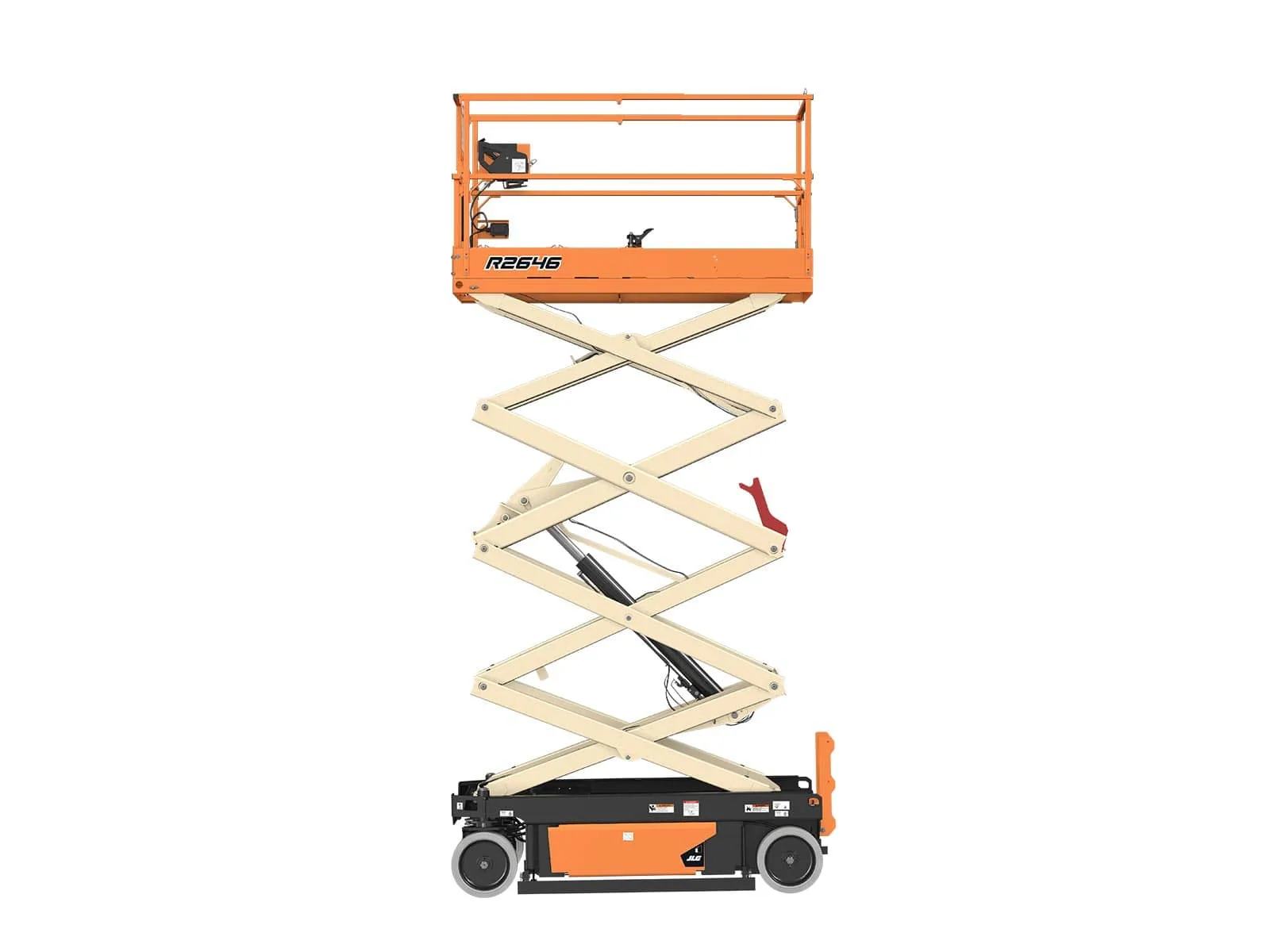

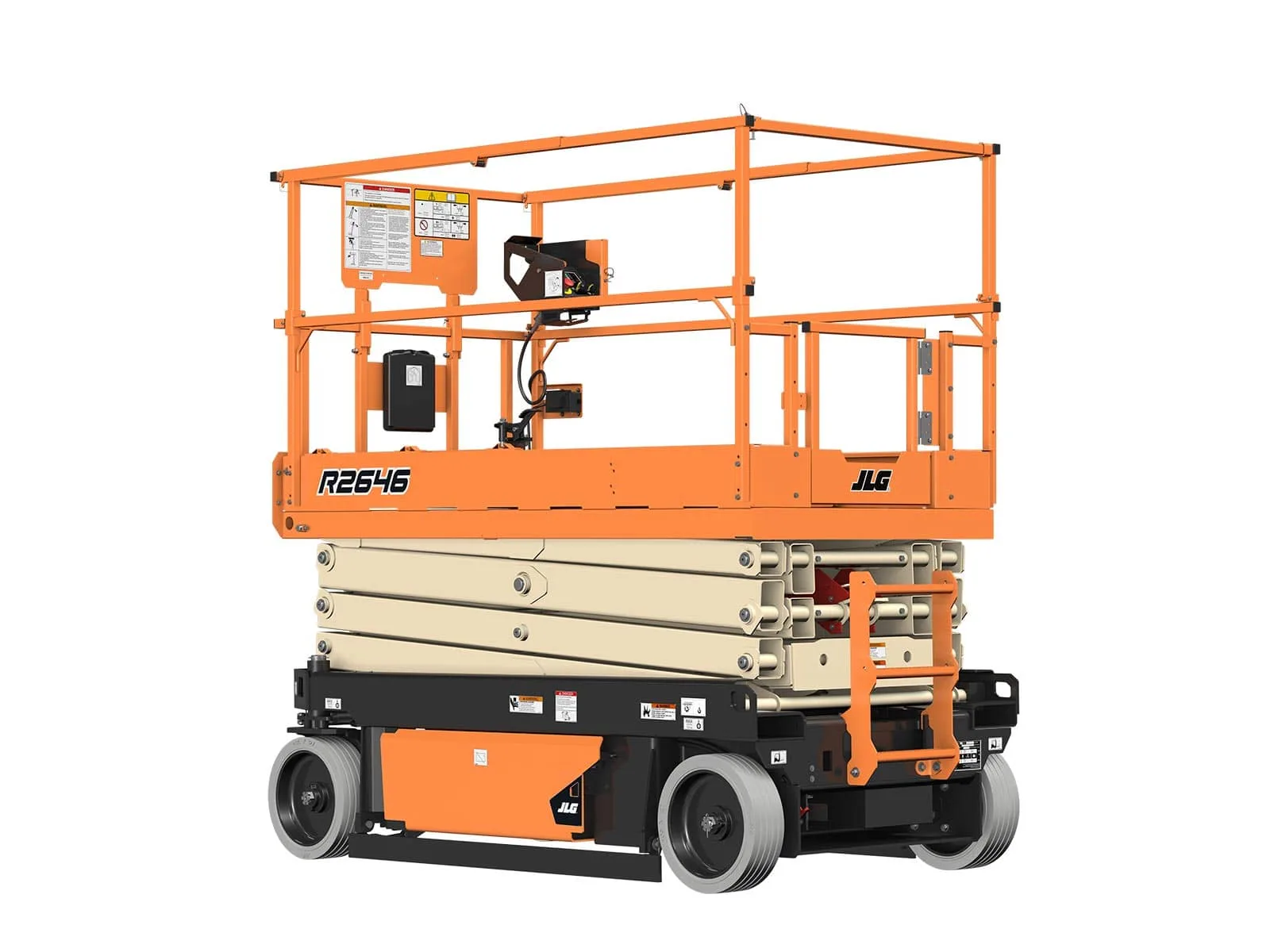

Scissor Lift 26’ 46”

Power Source

• Batteries: 4 x 6V, 220 A-h
• Charger: 27 amp automatic

General

• Brakes: Electric, Friction
• Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
• Hydraulic Pump: Fixed Displacement Gear
• Machine Weight: 5267 lb / 2389.07 kg
• Maximum Ground Bearing Pressure: 122 psi / 8.54 Kg/cm2

Performance

• Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
• Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
• Gradeability: 25 %
• Lift Time: 54 sec.
• Lower Time: 37 sec.
• Maximum Drive Height: 26 ft / 7.92 m
• Platform Capacity - Extension: 265 lb / 120.20 kg
• Platform Capacity - Unrestricted: 1200 lb / 544.31 kg
• Turning Radius - Inside: 0 ft / 0 m
• Turning Radius - Outside: 7 ft 4 in. / 2.24 m

Dimensional Data

• Ground Clearance: 4 in. / 0.1 m
• Machine Height: 7 ft 6 in. / 2.28 m
• Machine Height - Rails Folded: 6 ft / 1.82 m
• Machine Length: 7 ft 10 in. / 2.4 m
• Machine Width: 3 ft 10 in. / 1.17 m
• Platform Extension Length: 3 ft / 0.91 m
• Platform Height - Lowered: 3 ft 9 in. / 1.14 m
• Platform Railing Height: 3 ft 9 in. / 1.13 m
• Tire Size: 16 x 5 in
• Wheelbase: 6 ft 2 in. / 1.88 m

Reach Specifications

• Platform Height: 26 ft / 7.92 m
• Working Height: 32 ft / 9.75 m
