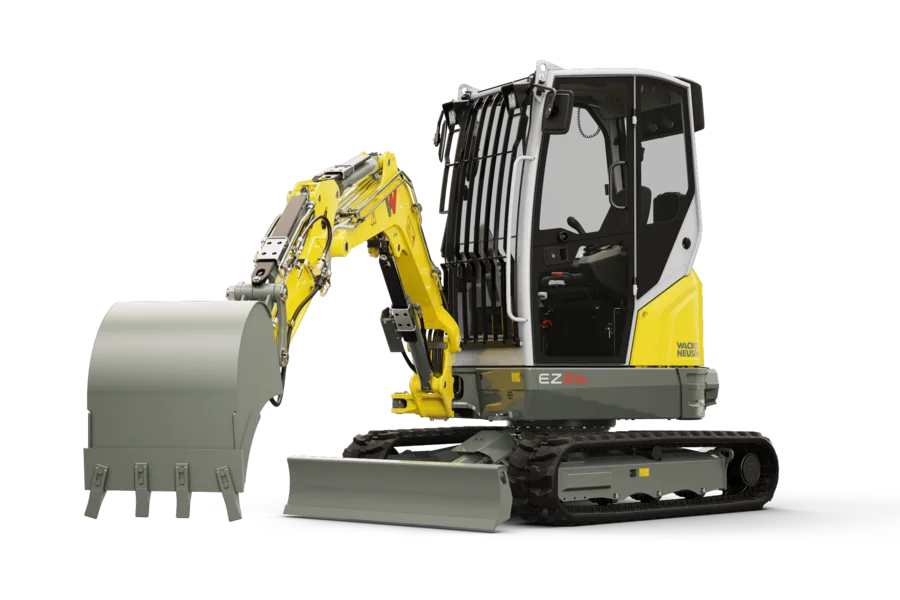

Mini Excavator 6k

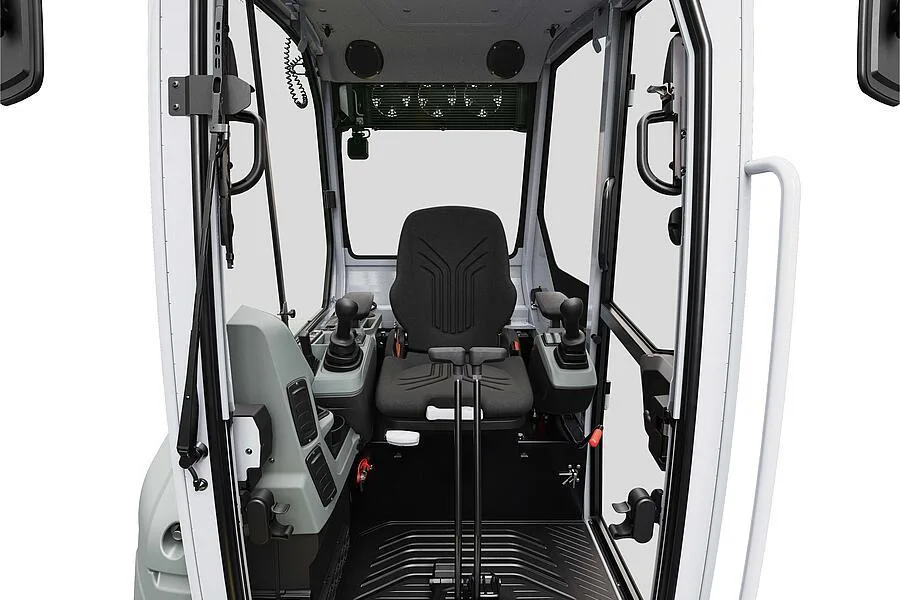

The EZ26 guarantees flexibility and user-friendliness with high performance features. The low weight allows transport, including of attachments, by car trailer. The wide field of vision around the machine from the cab increases the safety of the operator and the construction site environment. It also ensures constant control of the working environment. The simultaneously high performance and high operating comfort thanks to the wide access, jog-dial operating system and clear machine display make the EZ26 a feel-good zone for the operator.

The EZ26 guarantees flexibility and user-friendliness with high performance features. The low weight allows transport, including of attachments, by car trailer. The wide field of vision around the machine from the cab increases the safety of the operator and the construction site environment. It also ensures constant control of the working environment. The simultaneously high performance and high operating comfort thanks to the wide access, jog-dial operating system and clear machine display make the EZ26 a feel-good zone for the operator.

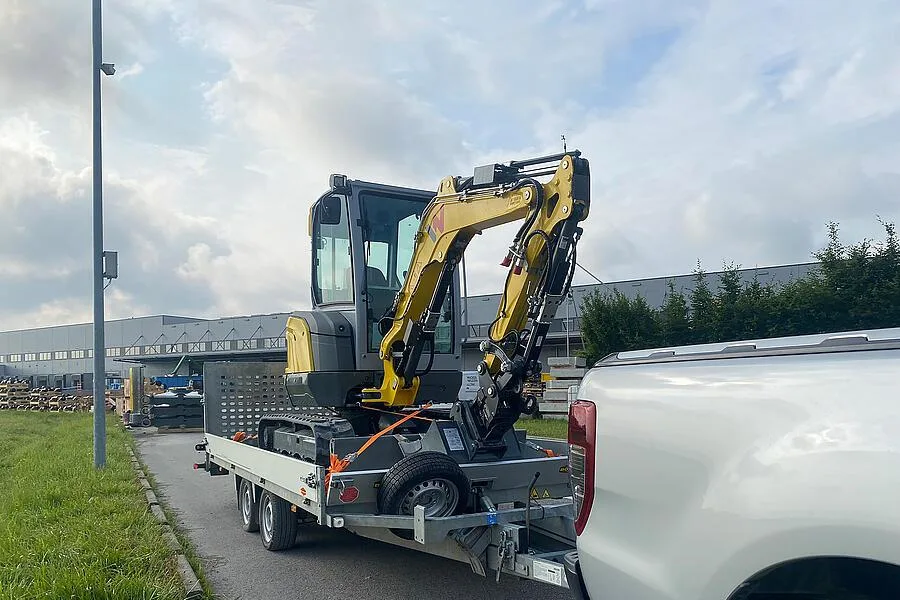

Easy transportation by car trailer

  • With the car trailer to the next construction site? No problem - the low weight enables transportation including attachment tools using a 3.5 t trailer.

Zero Tail

  • When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
  • Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.

Auto-stop function

  • To avoid unnecessary diesel consumption, or to reduce the operating hours of the machine, it is possible for the operator to activate the Auto-Stop function. This reduces fuel consumption and protects the environment. Furthermore, unnecessary operating hours and service costs are avoided, and as a result the resale value of the machine is increased.

Optimized hydraulics or engine-pump management

  • An optimized drive concept of the latest generation enables precise, fast, and efficient work. The electronically controlled hydraulic pump permanently adapts the required hydraulic power to the available power of the diesel engine, taking into account the operating conditions.

Additional information

Fuel Type

Features

Dimensions

  • Height: 95.0 in
  • Total Height with Rotating Beacon: 98.5 in
  • Width of Upper Carriage: 53.1 in
  • Width of Cab: 38.6 in
  • Width Travel Gear: 60.1 in
  • Transport Length (Short Shovel Arm): 165.3 in
  • Transport Length (Long Shovel Arm): 165.8 in
  • Digging Depth Max. (Short Shovel Arm): 102.5 in
  • Digging Depth Max. (Long Shovel Arm): 110.5 in
  • Piercing Depth Max. (Short Shovel Arm): 44.3 in
  • Piercing Depth Max. (Long Shovel Arm): 50.4 in
  • Piercing Height Max. (Short Shovel Arm): 163.4 in
  • Piercing Height Max. (Long Shovel Arm): 168.5 in
  • Dumping Height Max. (Short Shovel Arm): 108.8 in
  • Dumping Height Max. (Long Shovel Arm): 113.9 in
  • Digging Radius Max. (Long Shovel Arm): 189.5 in
  • Max. Reach at Ground Level (Short Shovel Arm): 177.5 in
  • Max. Reach at Ground Level (Long Shovel Arm): 185.3 in
  • Tail Swing Radius: 32.2 in
  • Tail Swing Radius with Tail Weight: 35.3 in
  • Boom Offset Max. (to Center of Bucket Right Side): 24.5 in
  • Boom Offset Max. (to Center of Bucket Left Side): 23 in
  • Stacking Height Max. (Dozer Blade Above Surface): 14.7 in
  • Digging Depth Max. (Dozer Blade Below Surface): 16.1 in
  • Length Travel Drive: 78.0 in
  • Max. Swivel Angle (Arm System to the Right): 1.96 in
  • Max. Swivel Angle (Arm System to the Left): 2.76 in
  • Boom Swing Radius Center: 82.76 in
  • Ground Clearance: 10.35 in

Standard Components

Engine

  • Engine Type: Liquid-cooled Yanmar diesel engine
  • Model: 3TNV80F
  • Cylinders: 3
  • Displacement: 1,266 ccm
  • Net Output (ISO 14396): 13.4 kW (18.2 hp) at nominal speed 2,200 min-1 (Stage 5)
  • Auto Idling System: Yes

General

  • Rubber Track: 250 mm
  • Dozer Blade: Included
  • LED Work Light: Mounted on lifting arm
  • Grease Press: Included
  • Operator’s Manual: Included

Canopy

  • Adjustable Comfort Seat: With mock leather upholstery and safety belt
  • Canopy (and Cabin): Meets current ROPS, TOPS, and FOPS regulations

Hydraulics

  • Load Sensing Hydraulic System:
    • Max. Discharge Volume: 65.8 l/min
    • Max. Working Pressure: 240 bar
  • Hydraulic Pilot Control: Via joystick operation
  • Valve Control: According to ISO, DIN, SAE, PCSA, and EURO standards
  • Auxiliary Hydraulic Connections: For two directions of travel, mounted on dipper stick
  • Auto 2 Speed Transmission: 2 travel speeds automatically switched (2nd gear is manually lockable)
  • Hydraulically Dampened Drive Pedals and Drive Lever:
  • Hydraulic Oil Cooler:
  • Parking Brake: For travel gear and swing gear
  • Proportional Control for AUX I: Adjustable discharge volume by means of Jog Dial

Security

  • EquipCare Telematics Hardware: Subscription ready

Editions

Edition E2600: Canopy, Long Dipper, MQC

  • Long Dipperstick:
  • Thumb Mounting Bracket:
  • Mechanical Quick Coupler (MQC):
  • Work Lights, Front (LED):
  • Auxiliary Hydraulics (Two Directions): With direct to tank setting
  • Flat Faced Couplers on Dipper:
  • ISO/SAE Control Pattern Change Over Valve:
  • Rear Counterweight: 192 lbs (87 kg)
  • Drive Signal (Travel Alarm):

Edition E2601: Cabin, Long Dipper, MQC

  • Cabin: With AC, 1 door, split front window
  • Radio Ready: Wiring and speakers installed
  • Long Dipperstick:
  • Thumb Mounting Bracket:
  • Mechanical Quick Coupler (MQC):
  • Work Lights: Front and rear of cabin (LED)
  • Auxiliary Hydraulics (Two Directions): With direct to tank setting
  • Flat Faced Couplers on Dipper:
  • ISO/SAE Control Pattern Change Over Valve:
  • Rear Counterweight: 192 lbs (87 kg)
  • Drive Signal (Travel Alarm):

Technical Data

Mechanical – output details

  • Travel Speed: 2.7 m/h
  • Break Out Force (Bucket): 5,076.2 lbf
  • Break Out Force (Lift Arm): 3,527.3 lbf

Mechanical Details

  • Length: 165.3″
  • Operating Weight (min.-max.): 5,412.4 – 7,403.1 lb
  • Digging Depth (max.): 110.4″
  • Width: 61″
  • Height: 95″

Engine

  • Cylinder Capacity: 77.3 in³
  • Inclined Position (max.): 30°
  • Tank Capacity: 10.6 gal US
  • Oil Filling (max.): 1.2 gal US
  • Effective Power: 19.6 hp
  • Nominal Engine Speed: 2,350 1/min
  • Starter Battery Voltage: 12 V
  • Engine Type: Diesel engine
  • Engine Manufacturer: Yanmar
  • Engine Designation: 3TNV80F – NPWN

Hydraulic

  • Operating Pressure (Hydraulics): 3,480 psi

Operating Fluids

  • Cooling Fluid Volume: 5.7 qt US
  • Hydraulic Fluid Volume: 36.5 qt US

Shipping and Storage

  • Shipping Weight: 5,467.5 – 5,952.5 lb

Classis

  • Traction Drive: Axial piston motor
