Mini Excavator 2k

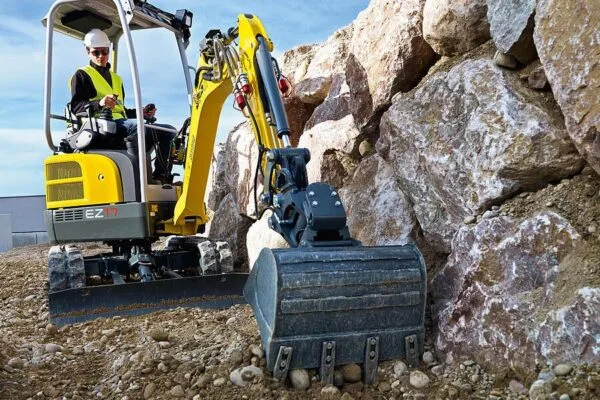

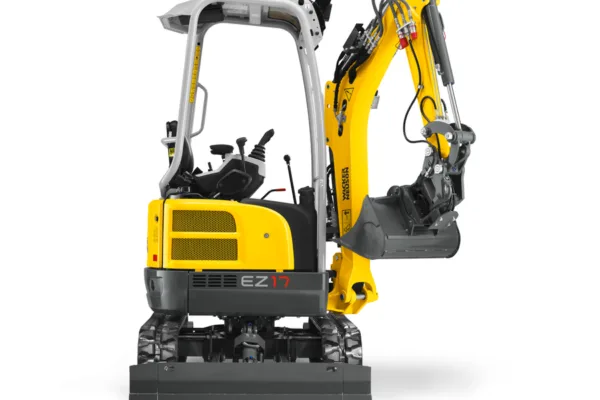

The EZ17 compact excavator is the most powerful zero tail excavator in its class. The large-volume diesel engine, LUDV (Load Sensing System) and an innovative cooling system provide the highest levels of performance and efficiency. The compact and durable design guarantees a long service life. The EZ17 offers the operator an unrestricted field of vision through the roof window.

The EZ17 compact excavator is the most powerful zero tail excavator in its class. The large-volume diesel engine, LUDV (Load Sensing System) and an innovative cooling system provide the highest levels of performance and efficiency. The compact and durable design guarantees a long service life. The EZ17 offers the operator an unrestricted field of vision through the roof window.



Optimally protected stick and lifting arm cylinders

  • The stick and lifting arm cylinders are mounted on the upper side, so that they won’t be demolished either by colliding with the dozer blade or due to picked-up material. This minimizes the probability of damages. This saves costs on the one hand and additionally ensures safety.

Powerful drive system with LUDV

  • The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.

Maintenance and disassembly easier than ever before

  • The EZ17 redefines suitability for daily use. With a 17 mm wrench, the most important components can be disassembled at the construction site and everything can be detached conveniently to reach and check easily. Maintenance and disassembly on the EZ17 is very simple. This is important for the construction site: Time is money.

100% zero tail

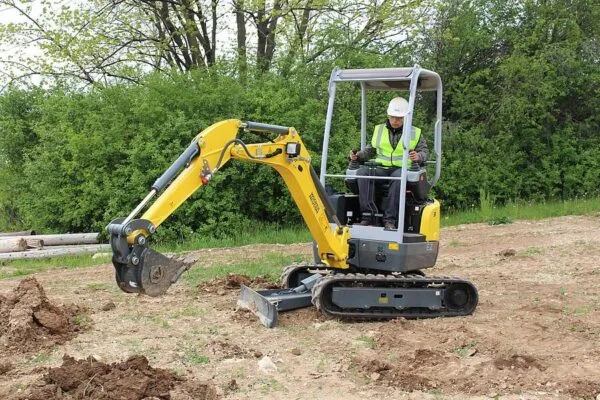

  • Sometimes less is more, especially in tight spaces. The excavator has no rear overhang and is ideally suited for working directly alongside walls and obstructions.

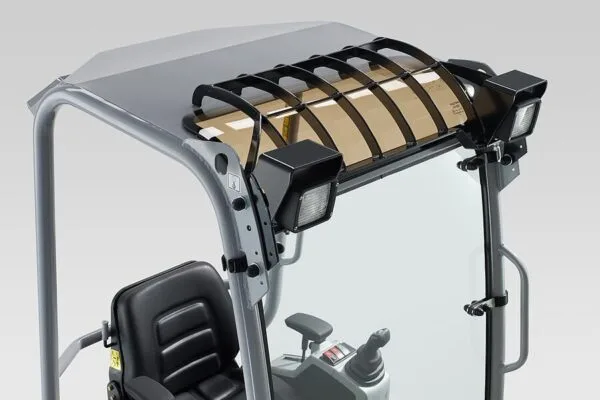

Canopy with roof window

  • The canopy with roof window provides a clear view in all directions, even upward. Beside the perfect view of the work area, comfort is of great importance. This is provided by, among other things, an adjustable operator’s seat with springs, an artificial leather cover, and a safety belt.

Features

Performance

2 travel speeds

  • The excavator is equipped with a second travel speed level as standard. This way, it can quickly switch positions on the construction site, saving valuable time.

Comfort

Hydraulic joystick operation

  • The ergonomic and sturdy joysticks, which work completely proportionally, expand the functions and possibilities for controlling the excavator. The operator can carry out movements more precisely and work with increased concentration.

Easy transportation by car trailer

  • With the car trailer to the next construction site? No problem – the low weight enables transportation including attachment tools using a 3.5 t trailer.

Variety

Numerous attachments

  • Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This way, you can increase your application options in no time and thus increase the utilization of your excavator.

2 lifting lugs on the roof

  • The machine can be moved on the construction site very easily without problems using a crane. Also, loading and unloading the excavator from the truck can be done quickly.

Dimension

  • A2: Height with cab: 92.99 in
  • A6: Total height with rotating beacon: 99.9 in
  • B1: Width of upper carriage: 38.6 in
  • B2: Width of cab: 34.8 in
  • B3: Width travel gear: 51.2 in
  • B4: Width travel gear retracted: 39.0 in
  • B5: Width of dozer blade: 51.2 in
  • C1: Transport length: 111.42 in
  • C2: Transport length short shovel arm: 141.1 in
  • C3: Transport length long shovel arm: 139.8 in
  • D2: Digging depth max., short shovel arm: 91.57 in
  • D3: Digging depth max., long shovel arm: 97.87 in
  • E2: Piercing depth max., short shovel arm: 67.44 in
  • E3: Piercing depth max., long shovel arm: 73.35 in
  • F2: Piercing height max., short shovel arm: 136.3 in
  • F3: Piercing height max., long shovel arm: 140.79 in
  • G2: Dumping height max., short shovel arm: 95.91 in
  • G3: Dumping height max., long shovel arm: 100.3 in
  • H2: Digging radius max., short shovel arm: 153.5 in
  • H3: Digging radius max., long shovel arm: 159.4 in
  • I2: Max. reach at ground level (short shovel arm): 151.5 in
  • I3: Max. reach at ground level (long shovel arm): 157.56 in
  • J1: Tail swing radius: 25.98 in
  • K1: Boom offset max. (to center of bucket right side): 20.98 in
  • K2: Boom offset max. (to center of bucket left side): 16.46 in
  • L1: Stacking height max. (dozer blade above surface): 10.6 in
  • M1: Digging depth max. (dozer blade below surface): 15.2 in
  • N1: Length travel drive: 63.27 in
  • O1: Max. swivel angle (arm system to the left): 65 °
  • O2: Max. swivel angle (arm system to the right): 57 °
  • P1: Track width: 9.06 in
  • Q1: Boom swing radius center: 64.06 in
  • Q2: Boom swing radius right: 59.8 in
  • Q3: Boom swing radius left: 54.02 in
  • R1: Distance bucket dozer blade, short shovel arm: 13 in
  • R2: Distance bucket dozer blade, long shovel arm: 10.2 in

Model Details

Engine

  • Yanmar 3TNV80F diesel engine, 3-cylinder, liquid cooled, T4F emissions compliant

General

  • 230 mm rubber track

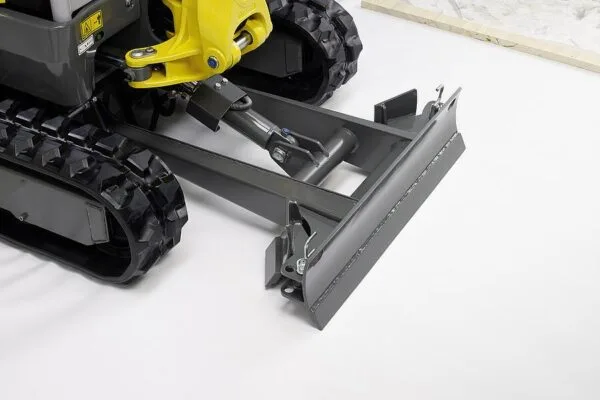

  • Dozer blade
  • Work light mounted to boom
  • Toolkit, including grease press and operator’s manual
  • Watertight, lockable document box

Canopy

  • Adjustable comfort seat with artificial leather cover and safety belt; canopy (and cabin) complies with current ROPS, TOPS and FOPS* regulations
  • *FOPS (level I and II) only with additional protective grating

Hydraulics

  • LUDV – hydraulic system (load-independent flow distribution)
  • Variable displacement pump (39.6 L/min)
  • Hydraulic pilot control via joystick operation
  • Valve control according to ISO, DIN, SAE, PCSA and EURO
  • Auxiliary hydraulic connections for two directions of travel, mounted on shovel arm
  • Hydraulic oil cooler
  • Two travel speeds
  • Hydraulic telescopic travel gear, 39 in to 51 in (990 mm – 1,300 mm), with dozer blade extension

Security

  • EquipCare telematics hardware – subscription ready

Technical Data

Mechanical – Output Details

  • Superstructure turning speed: 10 1/min
  • Travel speed: 4.8 km/h
  • Break Out Force (Bucket): 18.7 kN
  • Break Out Force (Lift Arm): 9.1 kN

Mechanical Details

  • Length: 3,585 mm
  • Operating weight (min.-max.): 1,724 – 2,083 kg
  • Digging depth (max.): 2,486 mm
  • Width: 990 mm
  • Height: 2,360 mm

Engine

  • Cylinder: 3
  • Cylinder capacity: 1,176 cm³
  • Inclined position max.: 30°
  • Tank capacity: 22 l
  • Effective power: 13.8 KW
  • Nominal Engine speed: 2,200 1/min
  • Operating power: 13.4 KW
  • Operating Engine speed: 2,200 1/min
  • Starter battery Voltage: 12 V
  • Battery capacity (nom. value): 44 Ah
  • Engine type: Diesel engine
  • Engine Manufacturer: Yanmar
  • Engine Designation: 3TNV76 – XNSV

Hydraulic

  • Operating pressure hydraulics: 240 bar
  • Flow rate: 39 l/min
  • Flow rate max.: 39 l/min
  • Tank capacity: 21 l
  • Operating pressure slewing gear: 150 bar
  • Hydraulic pump: Variable displacement pump

Chassis

  • Operating pressure: 240 bar

Shipping and Storage

  • Shipping weight: 1,596 kg
