Light Tower Vertical Mast 4 kW

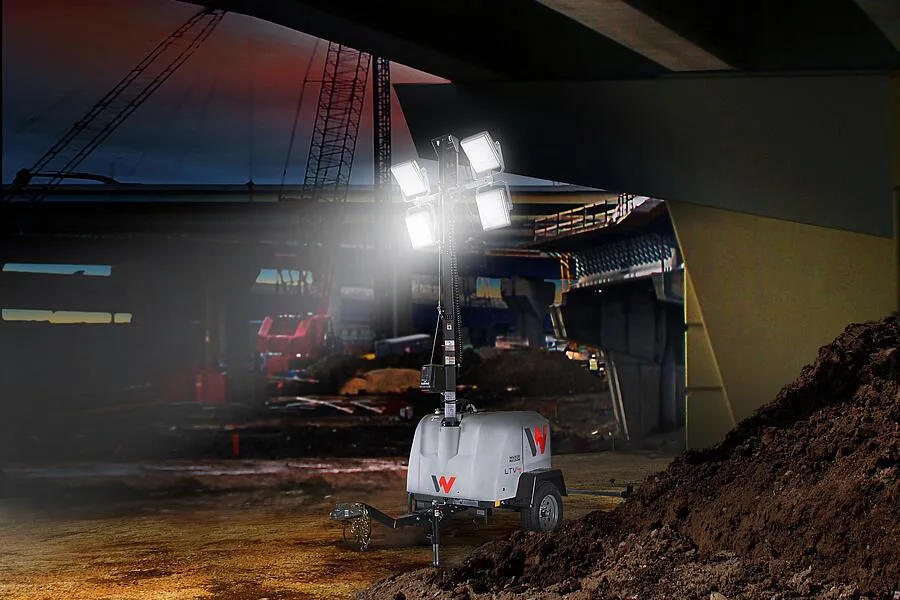

The LTV4L and LTV6L light towers combine the features and performance of traditional light towers in a small footprint. They are ideally suited for illuminating general job sites, site prep, concrete pours, specialty events, parking lots, road work and bridge work. The adjustable vertical mast extends 23 feet and can rotate 360 degrees for optimum lighting flexibility.
LTV4L
Compact vertical mast light tower with a Kohler diesel engine. The adjustable vertical mast extends 9 Meters and can rotate 360 degrees for optimum lighting flexibility.
- Item Number:- 5100054283

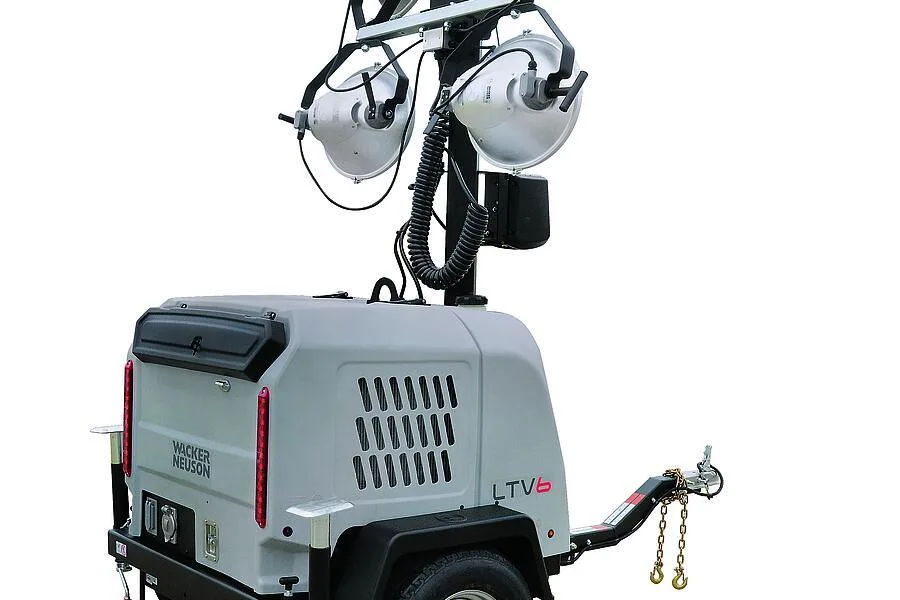

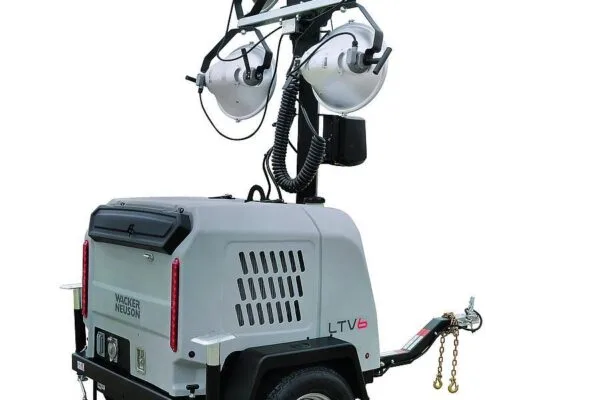

LTV6L
Compact vertical mast light tower with a Kohler diesel engine. The adjustable vertical mast extends 23 meters and can rotate 360 degrees for optimum lighting flexibility.
- Item Number:- 5100028693
Additional information
| Fuel Type |
|---|
Technical Data
 |
|
|
|---|---|---|
| LTV4L | LTV6L | |
| Model Variations | 6 kVA | |
| Nominal power [S] | 6 kVA | |
| Effective power | — | 9.1 KW |
| Operating Engine speed | 1,800 1/min | 1,800 1/min |

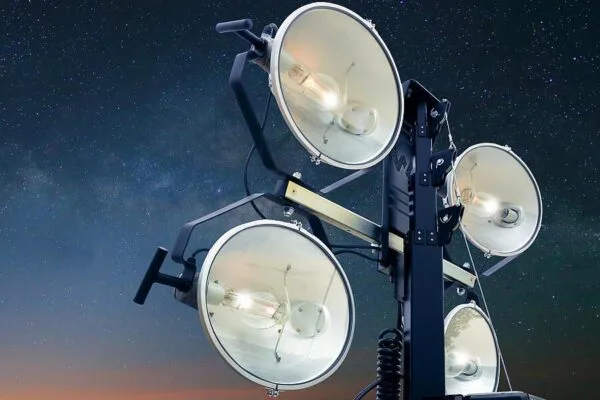

| Bulb power | — | 1,100 W |
| Standard (Effective power) | ISO 3046 IFN | ISO 3046 IFN |
| Exhaust-gas limit | — | IIIB/Tier IV Final |
| Nominal current | 34.2 A | 50 A |
| Nominal voltage | 120 V | 120 V |
| Nominal frequency | 60 Hz | 60 Hz |
| Phase | 1 ~ | 1 ~ |
| Length | 2,560 mm (100.8″) | 2,560 mm (100.8″) |
| Width | 1,470 mm (57.9″) | 1,470 mm (57.9″) |
| Height | 2,510 mm (98.8″) | 2,510 mm (98.8″) |
| Operating weight | 748 kg (1,649.1 lb) | 651 kg (1,435.2 lb) |
| Mast height max. | 7 m (23 ft) | 7 m (23 ft) |
| Output frequency | 60 Hz | 60 Hz |
| Voltage Regulation – Steady State | 6 % | 6 % |
| Generator Rating 1~ (Continuous) | 4.5 KW | 6 KW |
| Generator Manufacturer | Mecc Alte | Mecc Alte |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 2.0 | 3.0 |
| Cylinder capacity | 686 cm³ (41.9 Inch³) | 1,028 cm³ (62.7 Inch³) |
| Fuel | Winter Blend Diesel No. 2 | Diesel EN 590 |
| Fuel consumption | 0.2 GPH US (0.8 L/hr) | 0.7 GPH US (2.7 L/hr) |
| Tank capacity | 45.8 gal US (173.3 l) | 45.8 gal US (173.3 l) |
| Oil filling max. | 1.4 gal US (5.2 l) | 1 gal US (3.8 l) |
| Power rating max. | 8 hp (6 KW) | 6 KW |
| Engine speed (Power max.) | 1,800 1/min | 1,800 1/min |
| Standard (Power max.) | ISO 3046 IFN | ISO 3046 IFN |
| Nominal Engine speed | 1,800 1/min | 1,800 1/min |
| Starter battery Voltage | 12 V | 12 V |
| Battery Size BCI Group | GRP 31 | |
| Engine Manufacturer | Kohler | Kohler |
| Fuel consumption at full power | 0.5 GPH US (1.8 L/hr) | |
| Running time at 100% | 92 hrs | 60.5 hrs |

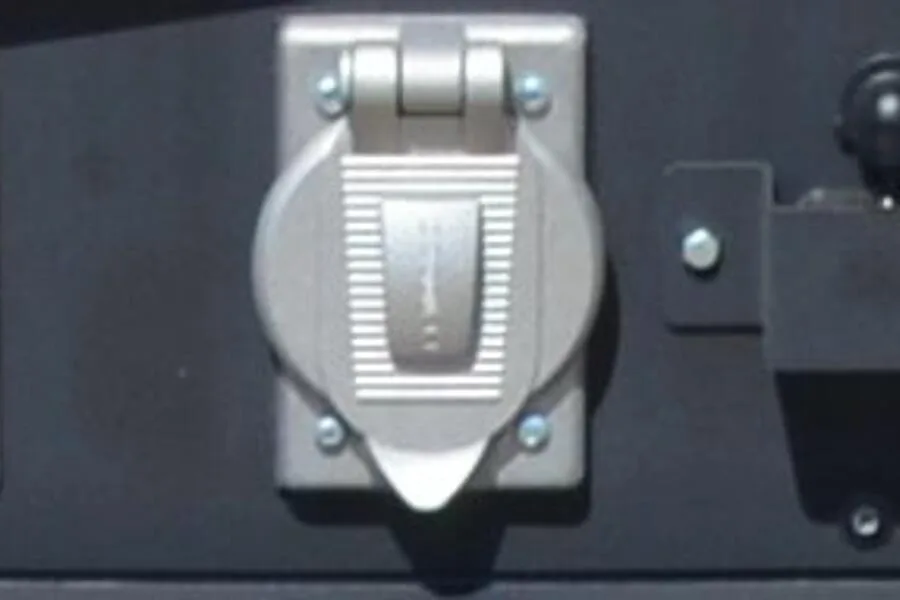

| Receptacle Type | NEMAL14-30R, TL, 125/250V, 30A | NEMAL14-30R, TL, 125/250V, 30A |
| Fuel consumption (Lights only) | 0.2 GPH US (0.8 L/hr) | 0.4 GPH US (1.7 L/hr) |
| Run Time (Lights only) | 198 hrs | 98.8 hrs |
| Length for shipping | 1,700 mm (66.9″) | 1,700 mm (66.9″) |
| Width for shipping | 1,470 mm (57.9″) | 1,470 mm (57.9″) |
| Height for shipping | 2,510 mm (98.8″) | 2,510 mm (98.8″) |
| Shipping weight | 594 kg (1,309.5 lb) | 648 kg (1,428.6 lb) |
| Illuminance | 5 fc (54 Lux) | 5 fc (54 Lux) |
| Coverage area | 4,337.9 ft² (403 m²) | 12,916.8 ft² (1,200 m²) |
| NEMA Beam Spread | Type 4 | Type 6 |
