Excavator 35k

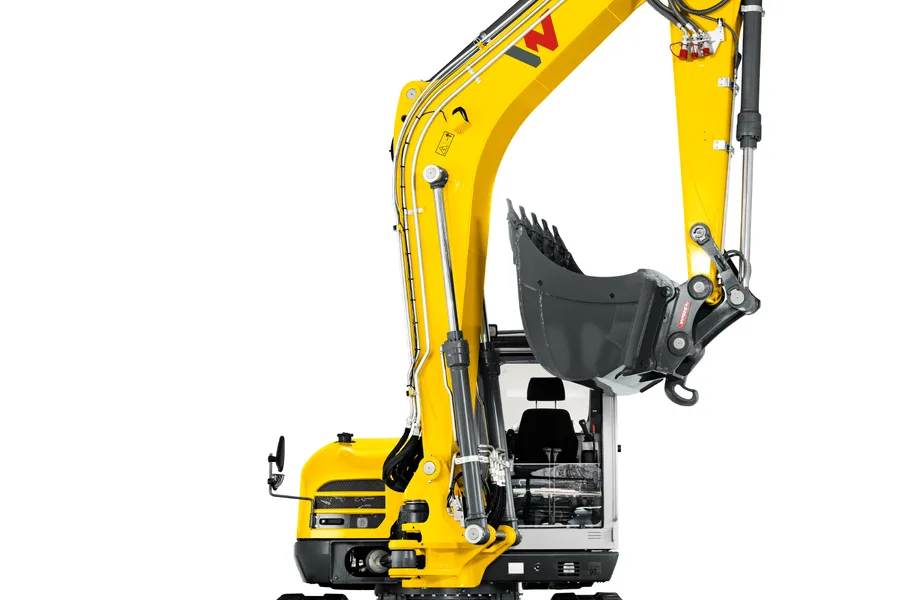

The ET145 is one of the world’s largest compact excavators, providing the power and performance of a larger model in a more compact package. It offers a perfect balance of power, maneuverability and stability. The ET145 features the most up-to-date innovations for comfortable and intuitive operation to tackle even bigger jobs.
The ET145 is one of the world's largest compact excavators, providing the power and performance of a larger model in a more compact package. It offers a perfect balance of power, maneuverability and stability. The ET145 features the most up-to-date innovations for comfortable and intuitive operation to tackle even bigger jobs.

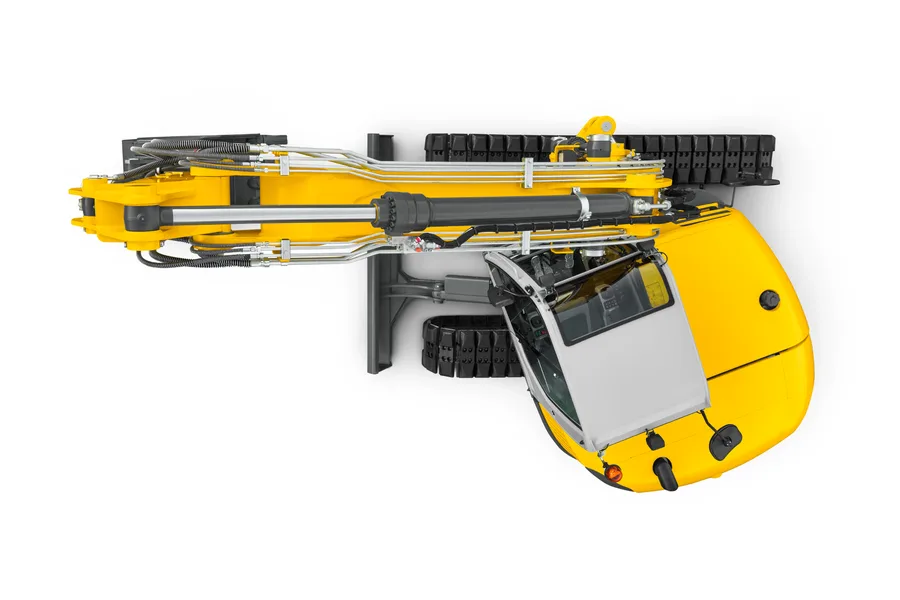

Swivel bracket
- A swivel bracket allows the arm system to be swiveled in both directions independently of the position of the uppercarriage. This enables precise work along walls or trenches. Working around obstacles or in flowing traffic is made easier and the visibility range for excavation work is increased.
Comfortable, fully glazed cab
- The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
- It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.
7-inch display and rear-view camera
- The large, multi-functional 7-inch color display ensures a perfect overview of all the machine's functions, as well as the respective camera images. The rearview camera enables safer reversing of the excavator. In addition, the view of the machine is better when it is rotated.
AUX I
- The auxiliary hydraulics offer the possibility of using a powerful hydraulic breaker as well as converting to a swivel bucket or soil auger.
- Choice of two movement directions or one with changeover for pressureless return
Additional information
| Fuel Type |
|---|
Features
Dimensions
| Rubber-Steel Track | Hybrid Track | ||
|---|---|---|---|
| A | Height with cab | 109.77 in | 111.31 in |
| B | Width of dozer blade | 98.0 in | 98.0 in |
| C | Transport length short shovel arm | 304.17 in | 303.3 in |
| C | Transport length long shovel arm | 306.85 in | 306.1 in |
| D | Digging depth max., short shovel arm | 196.25 in | 194.71 in |
| D | Digging depth max., long shovel arm | 215.95 in | 214.41 in |
| E | Piercing depth max., short shovel arm | 121.71 in | 120.17 in |
| E | Piercing depth max., long shovel arm | 139.87 in | 138.33 in |
| F | Piercing height max., short shovel arm | 324.18 in | 325.72 in |
| F | Piercing height max., long shovel arm | 336.95 in | 338.49 in |
| G | Dumping height max., short shovel arm | 221.43 in | 222.96 in |
| G | Dumping height max., long shovel arm | 234.23 in | 235.73 in |
| H | Digging radius max., short shovel arm | 325.48 in | 325.52 in |
| H | Digging radius max., long shovel arm | 343.84 in | 343.84 in |
| I | Max. reach at ground level (short shovel arm) | 316.93 in | 316.46 in |
| I | Max. reach at ground level (long shovel arm) | 335.96 in | 335.49 in |
| J | Tail swing radius | 79.47 in | 79.51 in |
| K1 | Boom offset max. (to center of bucket right side) | 33.33 in | 33.33 in |
| K2 | Boom offset max. (to center of bucket left side) | 25.14 in | 25.14 in |
| N | Length travel drive | 142 in | 144.28 in |
| O1 | Max. swivel angle (arm system to the left) | 70 ° | 70 ° |
| O2 | Max. swivel angle (arm system to the right) | 57 ° | 57 ° |
| Q1 | Boom swing radius right | 104.13 in | 104.13 in |
| Q2 | Boom swing radius left | 91.49 in | 91.49 in |
Engine
- Liquid-cooled Perkins turbo diesel engine, model 904J-E36TA, 4-cylinder/3,621 ccm, net output according to ISO 14396: 55.4 kW (75.3 hp), nominal speed 1,850 rpm (stage 5)
- Auto idling system
- Viscous fan
- Diesel filling pump
General
- Steel track 500 mm
- Dozer blade
- Work light on lifting arm, roof in front and rear, on the side and in front in the chassis
- Toolkit, including grease press and operator’s manual
Cab
- Glazed safety cabin, automatic air-conditioning, sliding side window, inward retracting windshield, windshield wiper/washing system, fully-lined cab interior
- Cabin meets the current ROPS, TOPS, and FOPS* regulations
- *FOPS (level I or II) only with additional protective grating
- Radio set with antenna and speakers
- 7” multifunction display for machine monitoring and status display, and the option of adjustable and programmable discharge volumes for auxiliary control circuits
- Rear-view camera
- Automatic air conditioning
- 3 outside rear-view mirrors (left side of cabin, 2x on right side of chassis)
Hydraulics
- 2x variable displacement pump and gear pump (2 x 126 + 21.5 + 32 L/min) with variable output setting
- Negative Control System, 2 levels of discharge volume setting
- Hydraulic proportional control with joystick operation
- Valve control according to ISO, DIN, SAE, PCSA and EURO
- 2 travel speeds
- Hydraulically dampened drive pedals and forward + reverse travel lever
- Hydraulic oil cooler
- Pilot controlled load-holding valves for boom and dipper stick cylinders
- Aggregation function for boom and dipper stick cylinders
- Parking brake for undercarriage and slewing system
- Auxiliary hydraulic connections for 2 directions of travel with additional return line, auxiliary hydraulics proportionally controlled
- Flow control valves for auxiliary hydraulics
- 3rd control circuit incl. flow control valves, proportionally controlled
- Overload warning device with hose rupture valves for lifting arm, bucket, and dozer blade cylinder (Advanced)
Security
- EquipCare telematics hardware – subscription ready
Edition E1603: Steel Tracks, Long Dipper, HQC
- Air ride heated seat
- Long dipperstick
- Thumb preparation kit
- Hydraulic Quick Coupler (HQC) with Easy Lock control system
- Auxiliary hydraulics (two directions) w/direct to tank setting
- Flat faced couplers on dipper
- ISO/SAE control pattern change over valve (electronic button in cab)
- Drive signal (travel alarm)
Edition E1604: Rubber Tracks, Long Dipper, HQC
- 500 mm Rubber Tracks
- Air ride heated seat
- Long dipperstick
- Thumb preparation kit
- Hydraulic Quick Coupler (HQC) with Easy Lock control system
- Auxiliary hydraulics (two directions) w/direct to tank setting
- Flat faced couplers on dipper
- ISO/SAE control pattern change over valve (electronic button in cab)
- Drive signal (travel alarm)
Edition E1605: Hybrid Tracks, Long Dipper, HQC
- 500 mm Hybrid Tracks (steel with rubber pads)
- Air ride heated seat
- Long dipperstick
- Thumb preparation kit
- Hydraulic Quick Coupler (HQC) with Easy Lock control system
- Auxiliary hydraulics (two directions) w/direct to tank setting
- Flat faced couplers on dipper
- ISO/SAE control pattern change over valve (electronic button in cab)
- Drive signal (travel alarm)
Technical Data
Mechanical-output details
- Superstructure turning speed: 11.6 1/min
- Travel speed: 3.2 m/H
- Break Out Force Bucket: 20,457.6 lbf
- Break Out Force Lift Arm: 15,511.8 lbf
Mechanical details
- Length: 306.6 “
- Operating weight (min.-max.): 34,284.1 – 38,084.9 lb
- Digging depth (max.): 214.3 “
- Width: 98 “
- Height: 109.7 “
Engine
- Cylinder: 4
- Cylinder capacity: 221 Inch³
- Effective power: 73.8 hp
- Nominal Engine speed: 2,050 1/min
- Battery capacity (nom. value): 120 Ah
- Engine type: Diesel engine
- Fuel: Diesel EN 590
- Exhaust-gas limit: EU Stage V
- Engine Manufacturer: Perkins
- Engine Designation: 904J – E36TA
Hydraulic
- Operating pressure hydraulics: 4,640 psi
- Flow rate max.: 80.6 gal/mi
- Tank capacity: 29.1 gal US
- Operating pressure slewing gear: 320 bar
- Hydraulic pump: Double variable and 2 gear pumps
Chassis
- Operating pressure: 3,480 psi
Shipping and Storage
- Shipping weight: 32,886.4 lb
