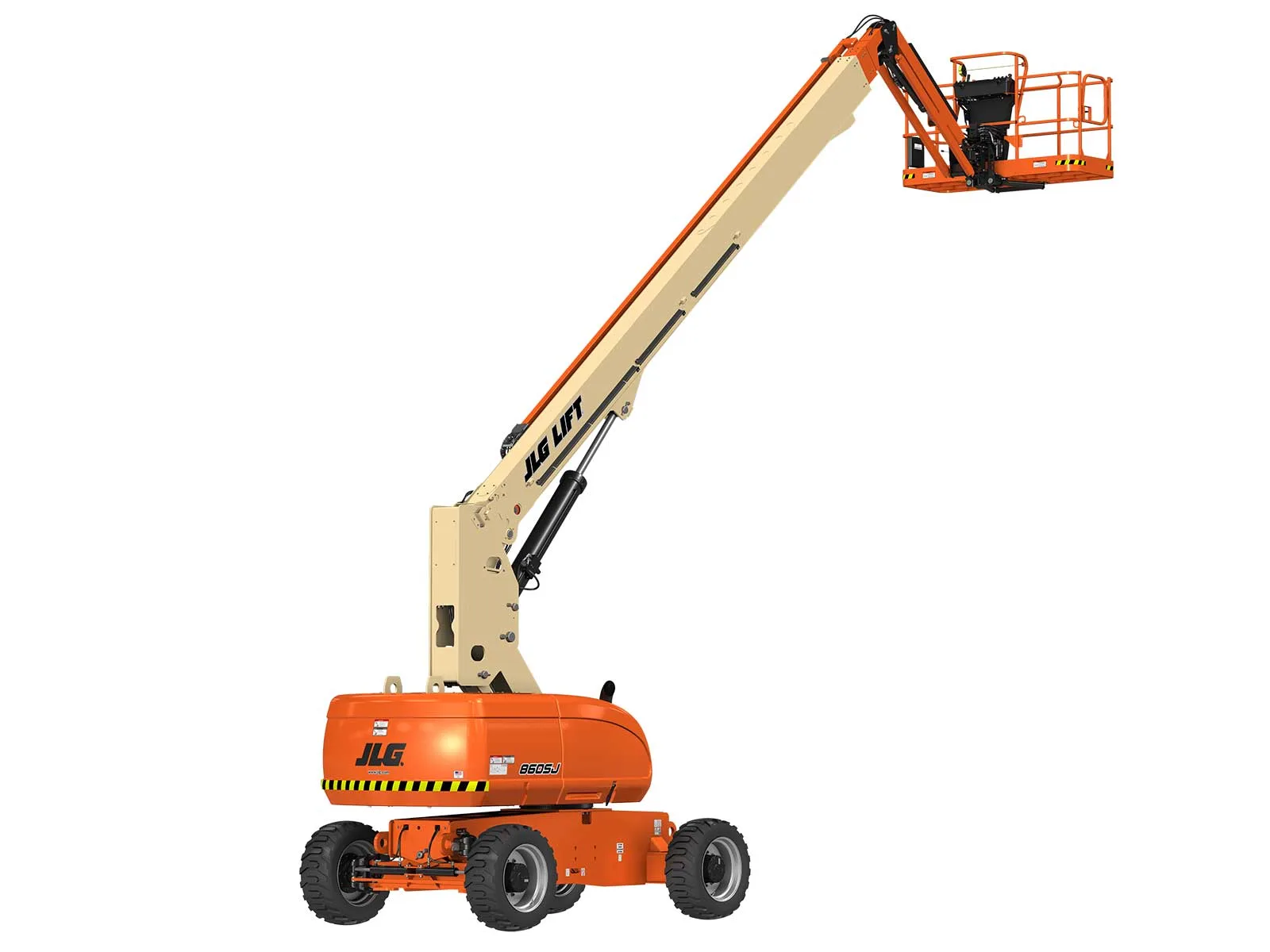

80’-86’ Straight Boom Lift
Key Specs
- Platform Height: 86 ft / 26.21 m
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 75 ft / 22.86 m
Key Features
- Reach full elevation in less than 70 seconds
- Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
- Equipped with a fuel-efficient Tier 4 engine
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Power Source
- Auxiliary Power: 12 Volts DC
- Capacity - Fuel Tank: 31 gal. / 117.35 L
- Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
- Engine Type - Dual Fuel: Ford MSG425 84hp
Performance
- Axle Oscillation: 8 in. / 0.2 m
- Drive Speed - 2WD: 3.5 mph / 5.63 km/h
- Drive Speed - 4WD: 3.5 mph / 5.63 km/h
- Gradeability - 2WD: 25%
- Gradeability - 4WD: 45%
- Platform Capacity - Restricted: 750 lb / 340.19 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Swing: 360 Degrees
- Swing Type: Continuous
- Turning Radius - Outside: 19 ft 8 in. / 5.99 m
- Jib - Range of Articulation: 130 Degrees
Dimensional Data
- Ground Clearance: 11 in. / 0.28 m
- Machine Height: 10 ft / 3.05 m
- Machine Length: 40 ft / 12.19 m
- Machine Width: 8 ft 2 in. / 2.49 m
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Tailswing: 4 ft 8 in. / 1.42 m
- Tire Size: 15-625 Foam Filled Lug Tread
Reach Specifications
- Horizontal Jib Rotation: 0 Degrees
- Horizontal Outreach: 75 ft / 22.86 m
- Platform Height: 86 ft / 26.21 m
General
- Capacity - Hydraulic Reservoir: 48 gal. / 181.70 L
- Maximum Ground Bearing Pressure: 81 psi / 5.67 Kg/cm²
- Machine Weight: 36888 lb / 16732.12 kg
Features
- Reach full elevation in less than 70 seconds
- Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
- Equipped with a fuel-efficient Tier 4 engine
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

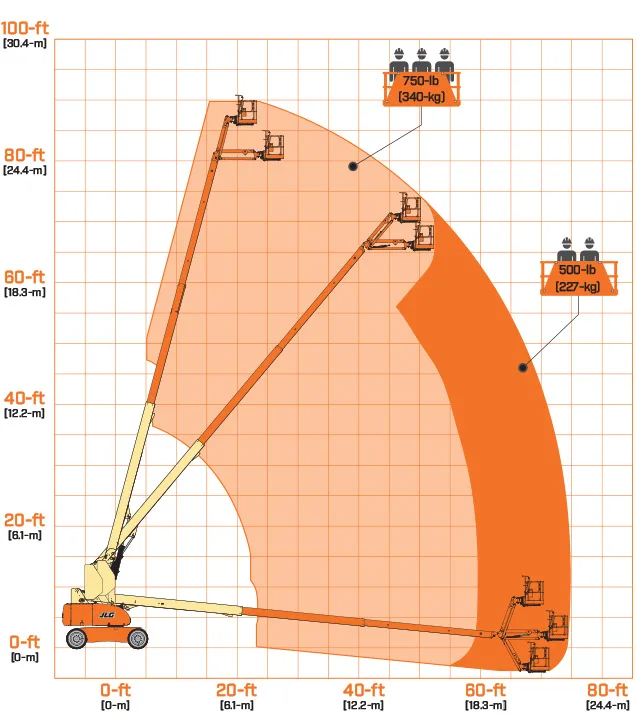

Reach
