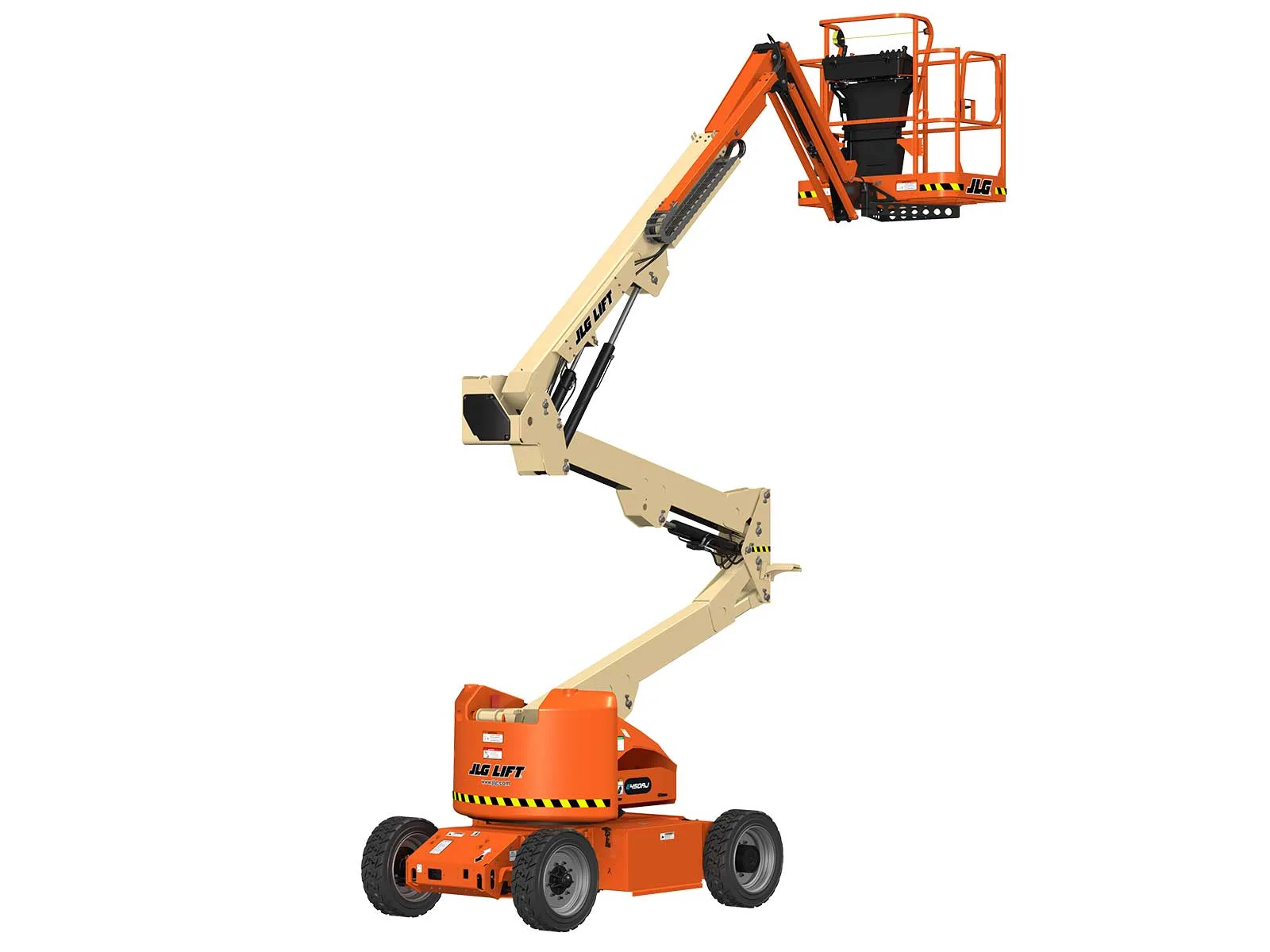

45’ Electric Articulating Boom Lift
Key Specs
- Platform Height: 45 ft / 13.72 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Power Source
- Batteries: 8 x 6V, 370 A-h
- Electrical System: 48 Volts DC
Performance
- Drive Speed - Platform Lowered: 3.2 mph / 5.15 km/h
- Gradeability - 2WD: 30%
- Platform Capacity: 500 lb / 226.80 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Swing: 360 Degrees
- Swing Type: Non-Continuous
- Turning Radius - Outside: 10 ft 4 in. / 3.15 m
- Jib - Range of Articulation: 141 Degrees
Dimensional Data
- Ground Clearance: 8 in. / 0.2 m
- Machine Height: 6 ft 7 in. / 2.01 m
- Machine Length: 21 ft 2 in. / 6.45 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 5 ft / 1.52 m
- Tailswing: 0 in. / 0 m
- Tire Size: 240/55-17.5 Foam Filled
- Wheelbase: 6 ft 7 in. / 2.01 m
Reach Specifications
- Horizontal Jib Rotation: 0 Degrees
- Horizontal Outreach: 23 ft 9 in. / 7.24 m
- Platform Height: 45 ft / 13.72 m
- Up and Over Height: 25 ft 3 in. / 7.7 m
General
- Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
- Machine Weight: 14,400 lb / 6,531.73 kg
- Maximum Ground Bearing Pressure: 110 psi / 7.70 Kg/cm²
Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Reach Chart
