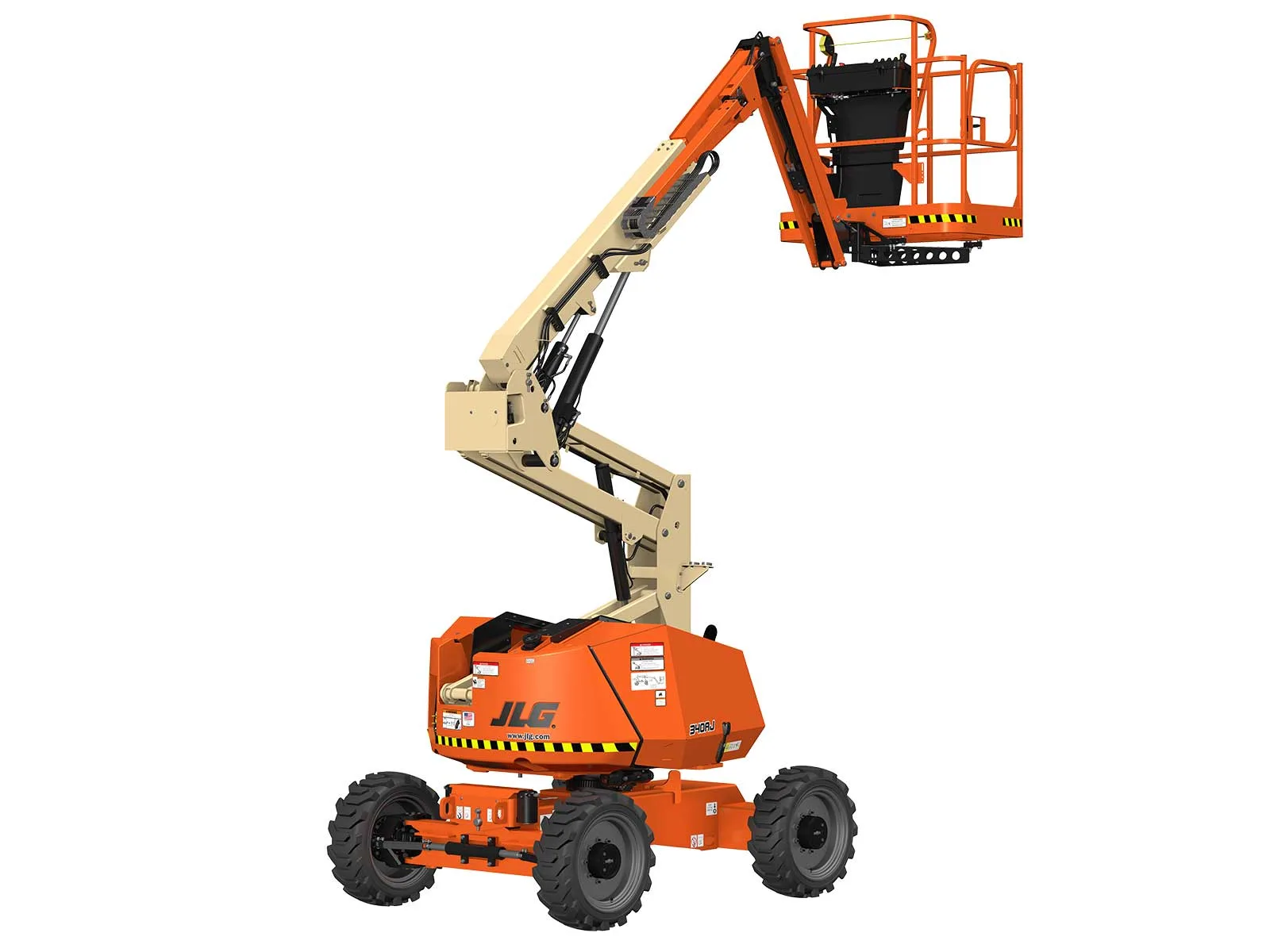

34’ Articulating Boom Lift

Power Source

• Auxiliary Power: 12 Volts DC
• Capacity - Fuel Tank: 13 gal. / 49.21 L
• Engine Type - Diesel: Kubota D1105 18.5 kW 24.8 hp
• Engine Type - Dual Fuel: PSI/GM 28.7 hp

Performance

• Axle Oscillation: 6 in. / 0.15 m
• Drive Speed - 4WD: 3.1 mph / 4.99 km/h
• Gradeability - 4WD: 45 %
• Platform Capacity - Unrestricted: 500 lb / 226.80 kg
• Swing: 355 Degrees
• Swing Type: Non-Continuous
• Turning Radius - Outside: 5 ft / 1.52 m
• Jib - Range of Articulation: 144 Degrees

Dimensional Data

• Ground Clearance: 10 in. / 0.25 m
• Machine Height: 6 ft 7 in. / 2.01 m
• Machine Length: 18 ft 2 in. / 5.54 m
• Machine Width: 6 ft 4 in. / 1.93 m
• Platform Dimension A: 2 ft 6 in. / 0.76 m
• Platform Dimension B: 5 ft / 1.52 m
• Tailswing: 2 in. / 0.05 m
• Tire Size: 265/50 D20 Foam Filled Lug Tread

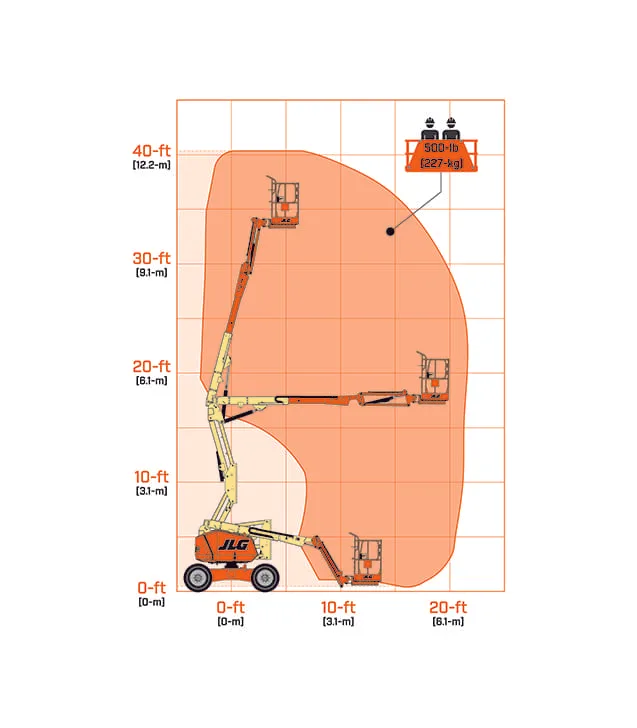

Reach Specifications

• Horizontal Jib Rotation: 0 Degrees
• Horizontal Outreach: 19 ft 11 in. / 6.07 m
• Platform Height: 33 ft 10 in. / 10.31 m
• Up and Over Height: 17 ft / 5.18 m

General

• Capacity - Hydraulic Reservoir: 20.6 gal. / 77.98 L
• Maximum Ground Bearing Pressure: 62 psi / 4.34 Kg/cm2
• Machine Weight: 10175 lb / 4615.30 kg
