Wheeled Skid Steer 1.5k

The Wacker Neuson SW21 has the power and performance to take on the toughest jobs. Powered by 74hp regeneration-free T4F engine, and available with High Flow hydraulics, the SW21 maximizes the performance of your hydraulic attachments.

Controls for Every Operator

  • Mechanical hand-foot controls allow the user to operate boom and bucket controls via foot pedals and machine steering via hand levers. Selectable EH joystick controls: Control patterns can be toggled between ISO and H-Pattern via a switch in the cab. Sensitivity can be adjusted to the operator’s preferences. With adjustable sensitivity and control patterns, the loader is designed to fit the control preferences of nearly any user.
  • Different types of controls ensure that operators with different backgrounds and experience can operate efficiently.
  • Choose between mechanical hand-foot controls and selectable EH Joystick Controls with ISO and H patterns.

Maintenance and Filter Free After-treatment

  • Maintenance, and regeneration free aftertreatment eliminates extreme heat and reduced performance during regeneration.
  • Equipped with a passive Diesel Oxidation Catalyst (DOC) and Exhaust Gas Recirculation requiring no maintenance, reducing Total Cost of Ownership (TCO).

Expansive Maintenance Access

  • Things break, and repairs are required, it's fact of life. The forward tilting cab and simple arrangement of internal components limit downtime when things go wrong.
  • A spacious engine bay, coupled with a swing up cooling package, provide convenient access to hydraulics and the engine.

Additional information

Fuel Type

Features

Performance

Top Auxiliary Hydraulics Performance

  • Category-leading, High Flow hydraulic horsepower provides the punch to boost performance with a wide range of attachments.

Maintenance

4 year / 4000 hour Engine Warranty

  • Kohler KDI engines come with industry-leading 4 year, 4,000 hour warranty, so both first and second life owners can be assured that their engine will be operating smoothly for years to come.

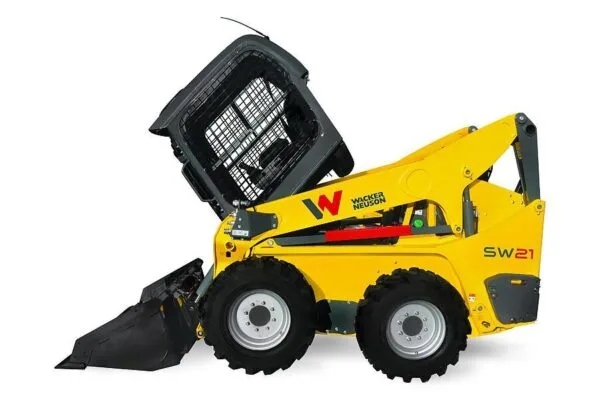

Forward Tipping Cab

  • Whether the lift arm is fully raised or on the boom stops, a forward tipping cab provides ample access to hydraulic pumps and motors.

Dimensions

  • A1:Overall length with bucket: 134.9 in
  • B1:Overall length without bucket: 106.6 in
  • C2Overall width without bucket: 65.9 in
  • D1Overall height: 81.5 in
  • E1Wheelbase: 43.5 in
  • F1Hinge pin height: 124 in
  • G1Dump height max.: 96.5 in
  • H1Dump angle: 42 °
  • I1Bucket rollback at max. stroke height: 30 °
  • J1Dump reach: 37.9 in
  • K1Bucket rollback at ground level: 30 °
  • L1Ground clearance: 7.6 in
  • M1Angle of departure: 24 °

Model Details

  • 74hp Kohler KDI 2504 TCR diesel engine, Water-cooled, T4F, 4-cylinder, Turbocharged, Aftercooled
  • Forward Tilting, ROPS / FOPS Level 1 Canopy w/ Side Screens
  • Static Seat w/ Integral Armrests, 3-Point, 2″ Seatbelt
  • 3″ mono-color display
  • Two Front & Two Rear Halogen Work Lights
  • Standard Auxiliary Hydraulics – 20 gpm
  • 10×16.5 Standard Duty Tires
  • Deluxe EQUIPCARE (Requires Subscription)

Technical Data

Mechanical – output details

  • Break Out Force Bucket: 5,300.1 lbf
  • Break Out Force Lift Arm: 5,000 lbf
  • Tractive Effort max. at 100% effective force: 7,636.8 lbf
  • Bucket Roll Back: 1.6 s
  • Bucket Roll Out: 2.1 s
  • Lift Arm Raise: 3.7 s
  • Lift Arm Lower: 2.5 s
  • Travel Speed Stage 1: 8.4 m/H
  • Travel Speed Stage 2: 13.9 m/H

Mechanical Details

  • Overall Length without Bucket: 106.6 “
  • Overall Length with Bucket: 134.8 “
  • Overall Width without Bucket: 65.9 “
  • Overall Height to Top of ROPS: 81.5 “
  • Overall Height to Top of ROPS with Large Tire Option: 83 “
  • Bucket Hinge Pin Height: 124 “
  • Bucket Hinge Pin Height with Large Tire Option: 125.5 “
  • Bucket Roll Back at Ground: 30 °
  • Bucket Roll Back at Maximum Height: 30 °
  • Angle of Departure: 24 °
  • Bucket Dump Height at Maximum Height: 96.5 “
  • Bucket Dump Height at Maximum Height (Large Tire Option): 97.2 “
  • Bucket Dump Angle at Maximum Height: 42 °
  • Operating Weight: 6,510.3 lb
  • Ground Clearance (Large Tire Option): 9.1 “
  • Ground Clearance: 7.6 “
  • Dump Reach at Maximum Height: 37.9 “
  • Wheelbase: 43.5 “

Engine

  • Cylinder: 4
  • Cylinder Capacity: 151.5 Inch³
  • Operating Power: 73.8 hp
  • Operating Engine Speed: 2,750 1/min
  • Engine Manufacturer: Kohler

Hydraulic

  • Flow Rate: 20.1 gal/mi
  • Flow Rate Max: 10 gal/mi
  • Auxiliary Relief Pressure: 3,494.5 psi

Operating fluids

  • Fuel Tank Capacity: 32.8 gal US

Chassis

  • Tip Load: 4,199.8 lb
  • Rated Operating Capacity at 50% Tip Load: 2,098.8 lb
  • Rated Operating Capacity at 35% Tip Load: 1,468.3 lb
  • Tires: 10 x 16.5
