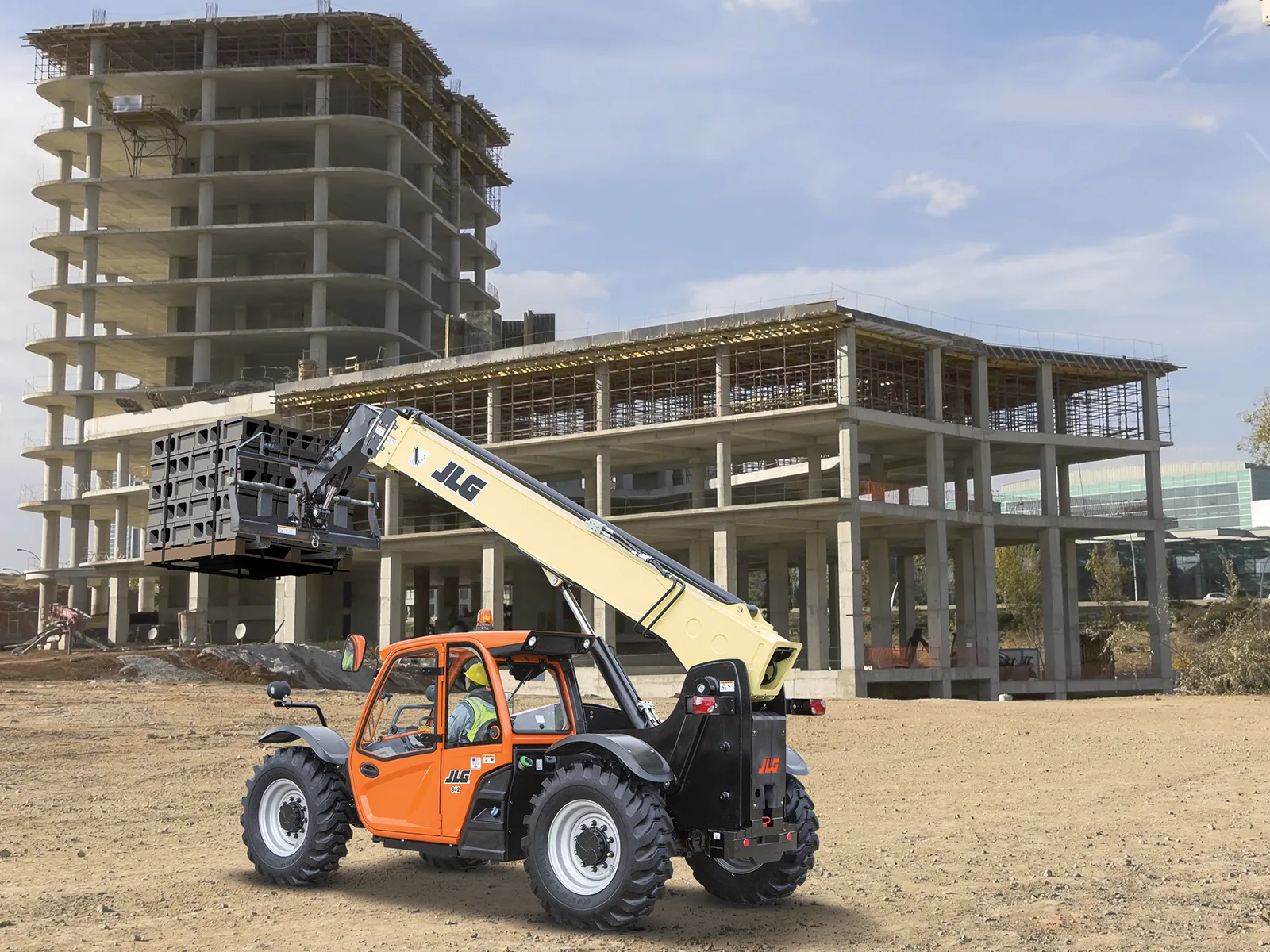

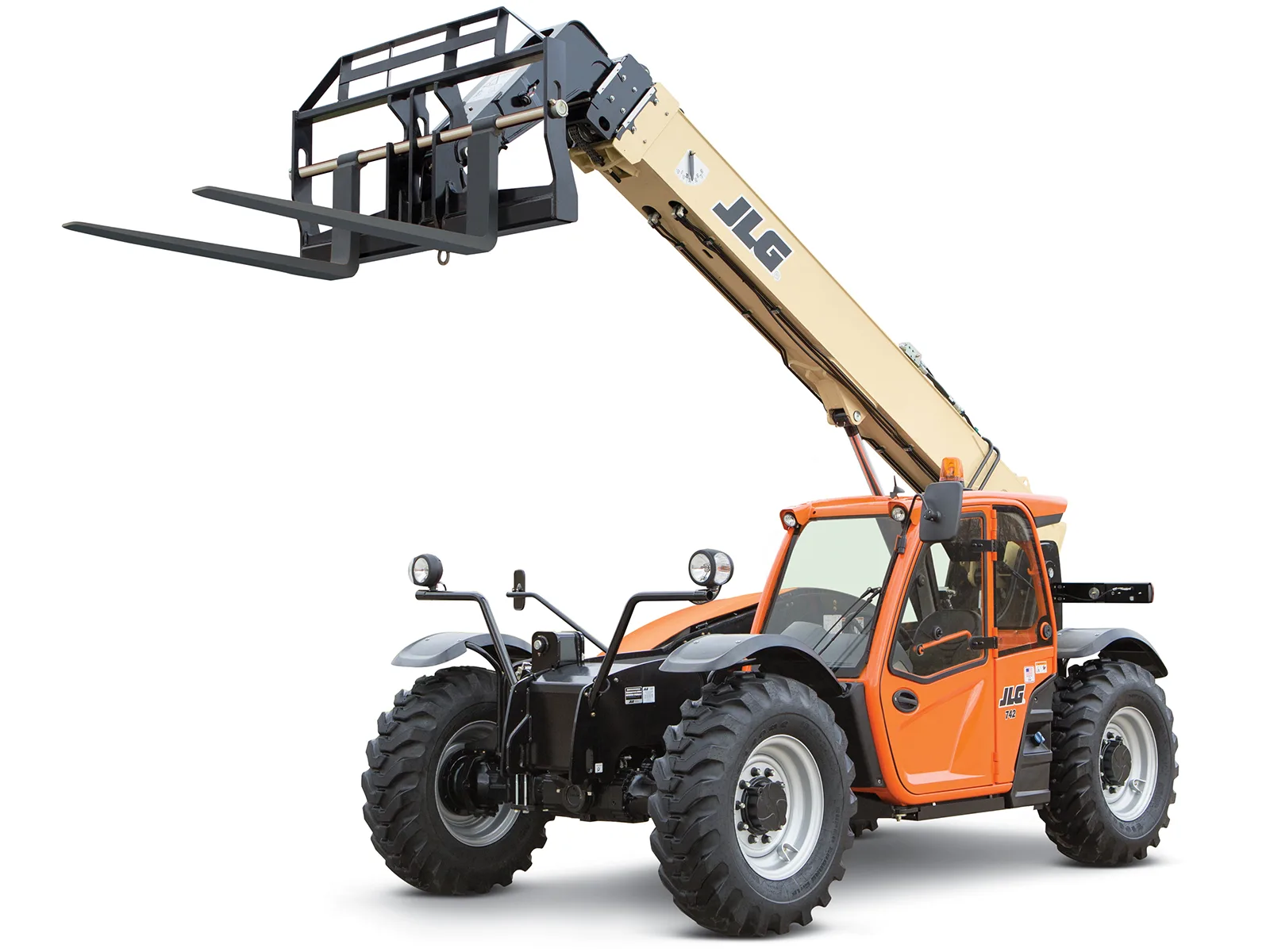

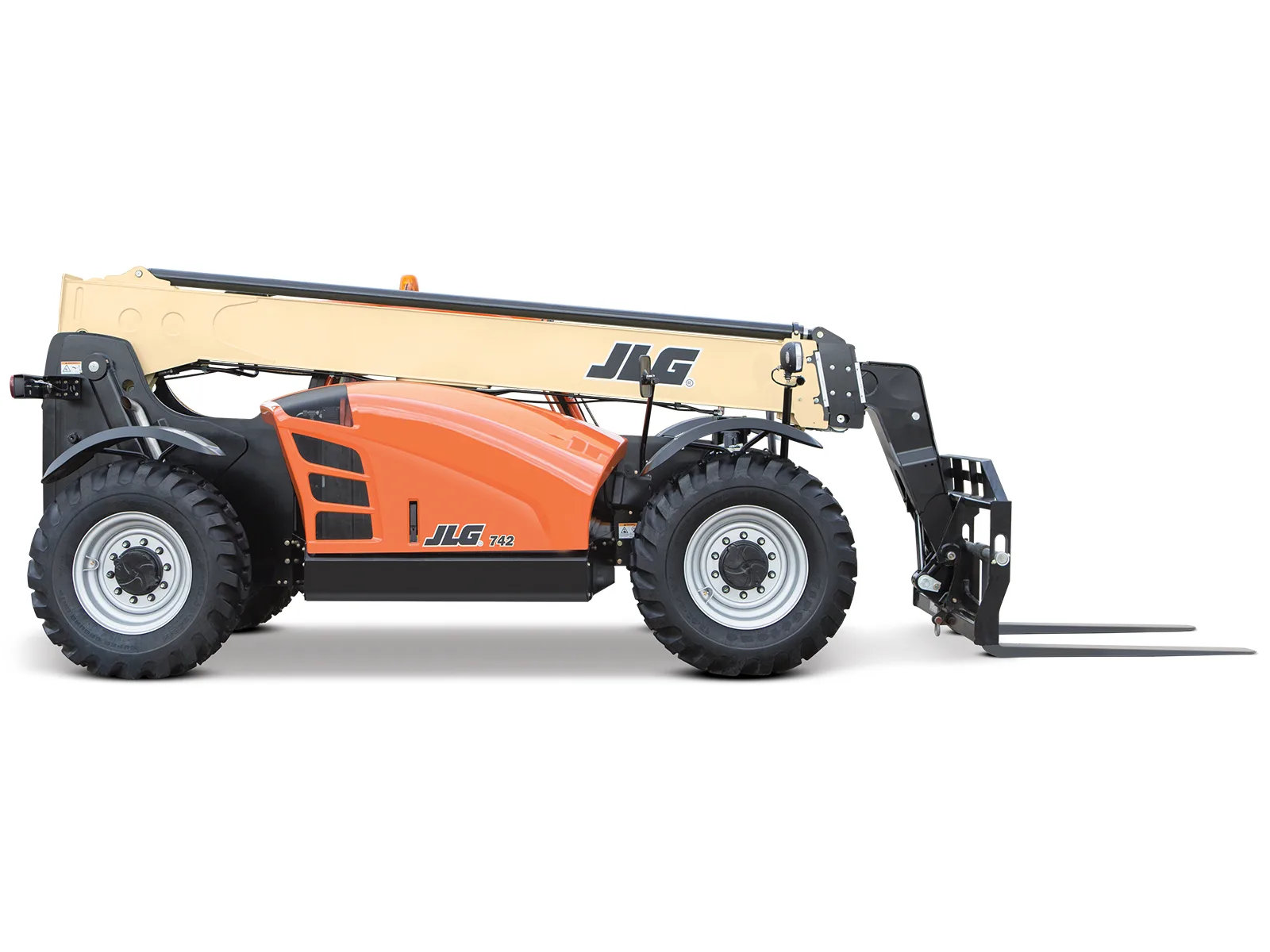

Telehandler 7k 42’

Key Specs

  • Maximum Lift Capacity: 7000 lb / 3175.15 kg
  • Maximum Lift Height: 42 ft / 12.8 m
  • Maximum Reach: 29 ft 1 in. / 8.86 m

Key Features

  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
  • Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera

Performance

  • Drawbar Pull: 19,000 lb / 8,618.26 kg
  • Lift Capacity at Full Height: 6,000 lb / 2,721.55 kg
  • Lift Capacity at Max Reach: 1,000 lb / 453.59 kg
  • Load Center: 2 ft / 0.61 m
  • Maximum Lift Capacity: 7,000 lb / 3,175.15 kg
  • Maximum Lift Height: 42 ft / 12.8 m
  • Maximum Reach: 29 ft 1 in. / 8.86 m
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 12 ft / 3.66 m
  • Speed - Maximum Lift: 11.3 sec.
  • Speed - Maximum Lower: 9 sec.
  • Speed - Maximum Telescope In: 11.5 sec.
  • Speed - Maximum Telescope Out: 11 sec.
  • Speed - Maximum Travel: 18 mph / 28.97 km/h

Dimensional Data

  • Ground Clearance: 1 ft 5 in. / 0.43 m
  • Machine Height: 8 ft / 2.44 m
  • Machine Length: 18 ft 11 in. / 5.77 m
  • Machine Width: 8 ft 1 in. / 2.46 m
  • Tire Size: 370/75-28
  • Wheelbase: 11 ft 3 in. / 3.43 m

Power Source

  • Capacity - Fuel Tank: 38.3 gal. / 144.98 L
  • Engine Horsepower: 74 hp / 55.20 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSF 3.8L Tier 4 Final
  • Maximum Engine RPM: 2,500 rpm

General

  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Function Pump Type: Load Sensing Piston
  • Operating Vehicle Weight: 21,476 lb / 9,741.35 kg
  • Service Brake Type: Wet Multi-Disc
  • Transmission - Nr Forward Gears Standard: 4
  • Transmission - Nr Reverse Gears: 3
  • Transmission Type: Powershift

Additional information

Fuel Type

Size

Features

  • Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
  • Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
  • Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Increased versatility—wide range of attachment options
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

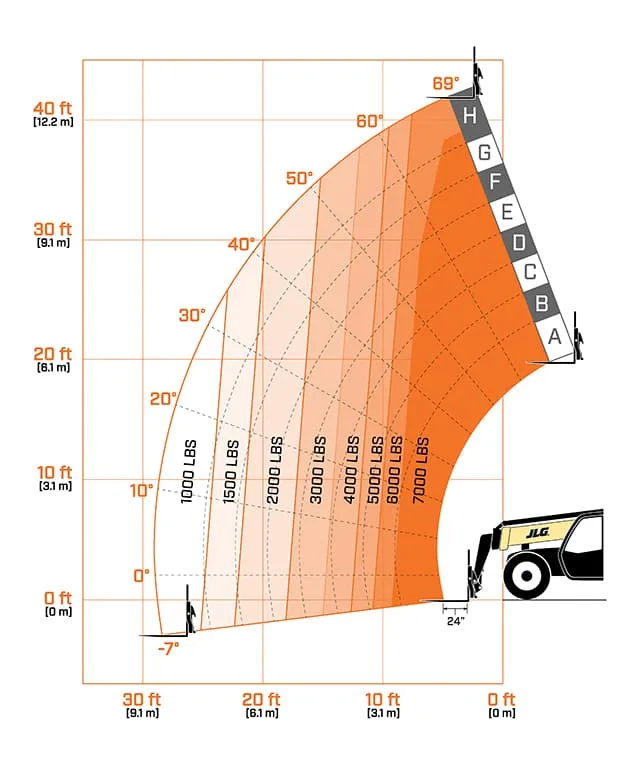

Load Chart
