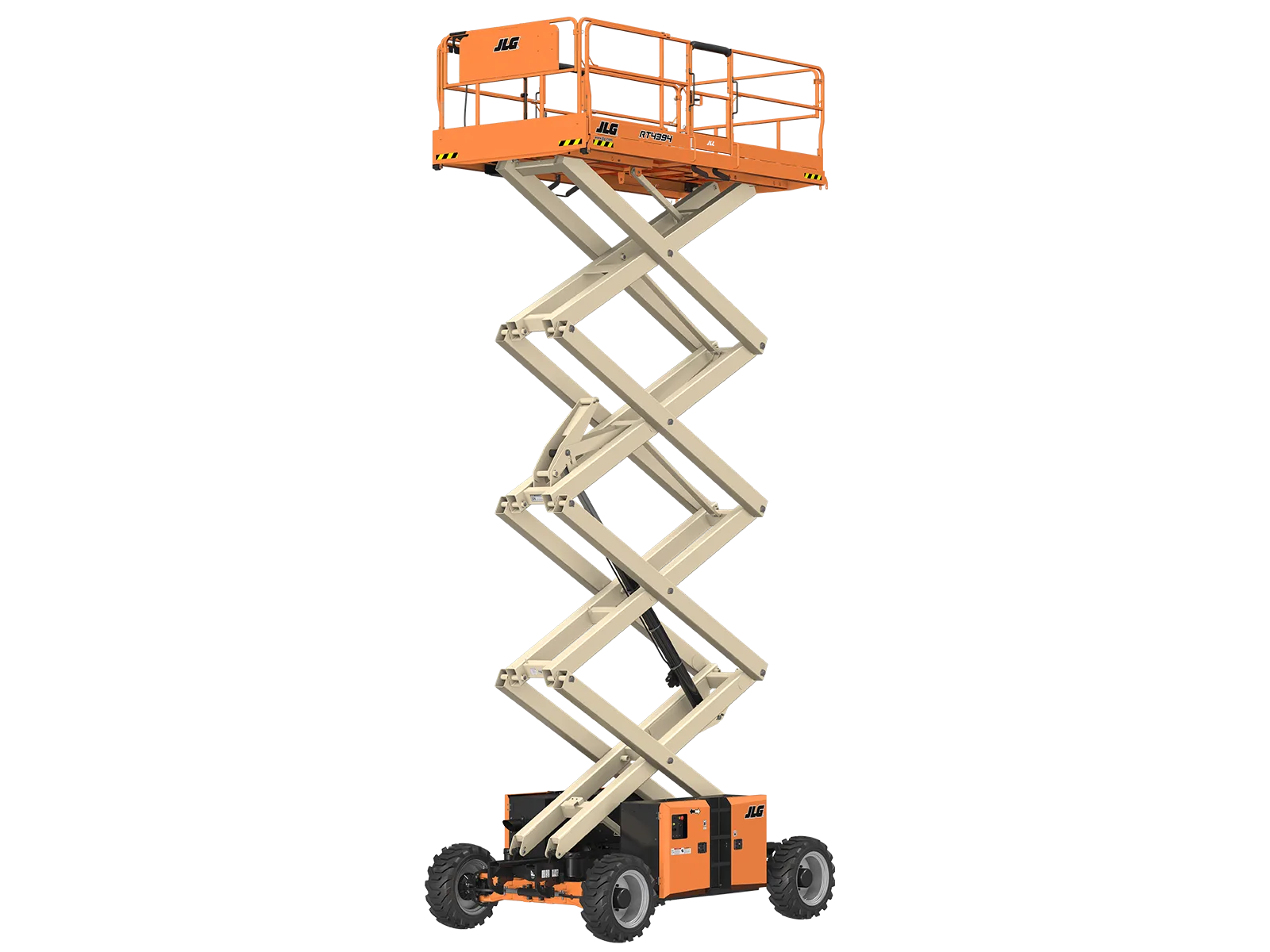

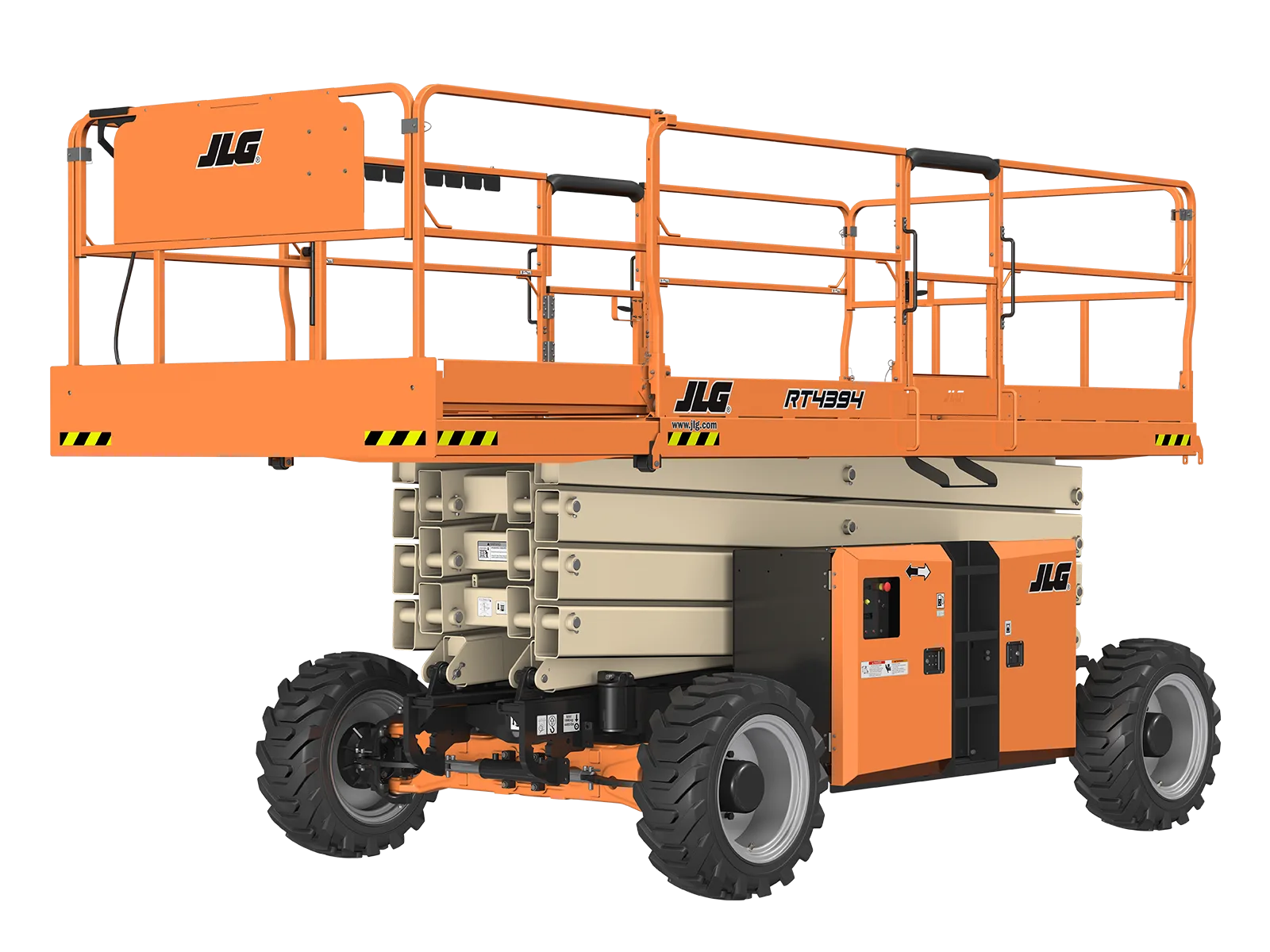

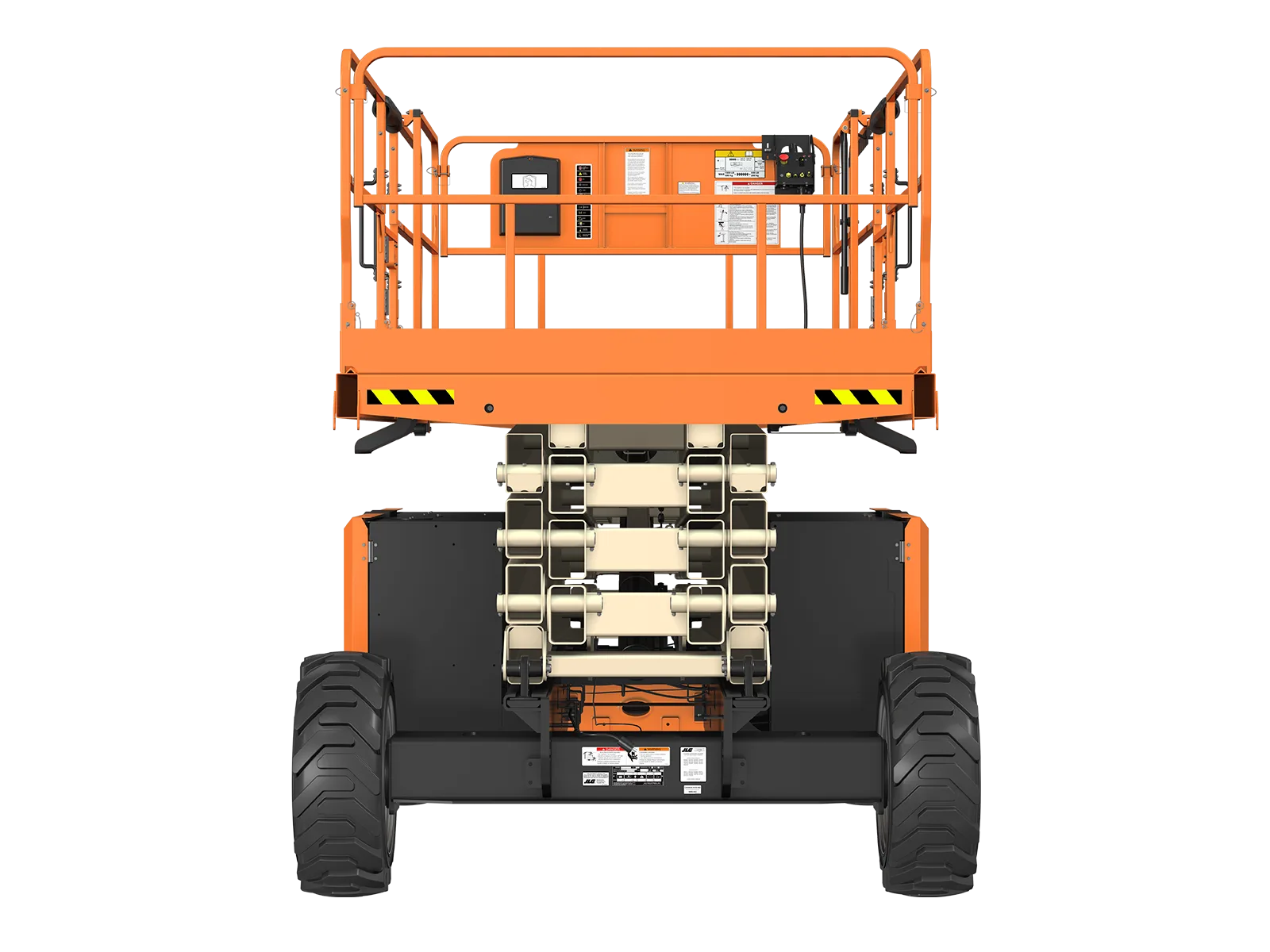

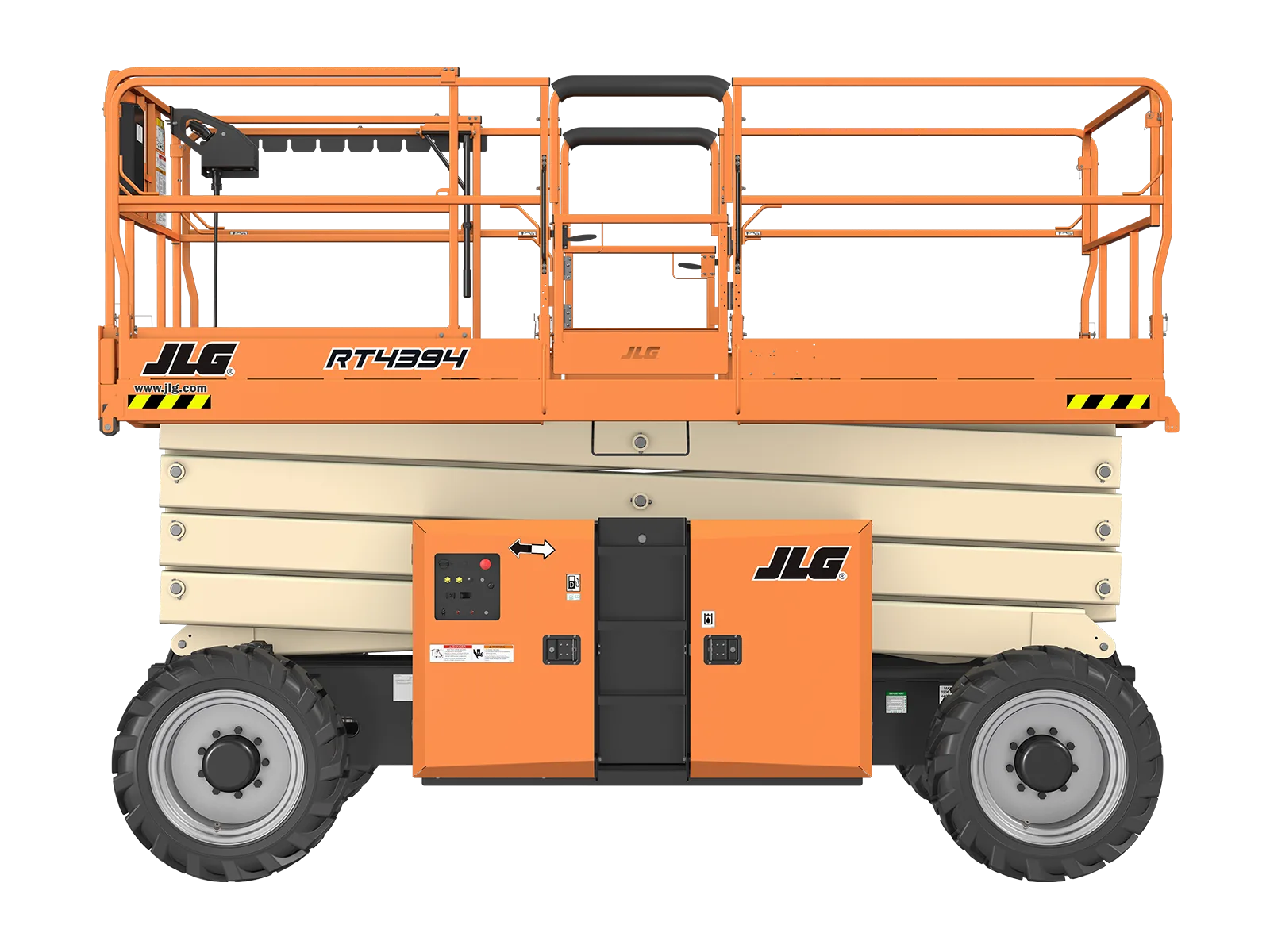

Scissor Lift 40’ 90” RT

Key Specs

  • Platform Height: 43 ft / 13.11 m
  • Platform Capacity: 1500 lb / 680.39 kg
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Drive Speed – Platform Lowered: 3.5 mph / 5.63 km/h

Key Features

  • Enhanced Stability on Uneven Surfaces – Standard oscillating axle gives you better traction and grade climbing ability
  • Smoother Extension Deployment – Platform is designed to shed debris and allows for smoother extension deployment
  • Better Serviceability – Fully accessible hydraulic and engine compartments are easier to service
  • The RT4394 is the new model designation of the previous 430LRT model
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware

Power Source

  • Capacity - Fuel Tank: 30 gal. / 113.56 L
  • Engine Type - Diesel: Kubota, 1.26L, 24.8HP
  • Engine Type - Dual Fuel: Kubota, 1.26L, 24.8HP

General

  • Capacity - Hydraulic Reservoir: 32 gal. / 121.13 L
  • Machine Weight: 15210 lb / 6899.14 kg

Performance

  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
  • Gradeability: 45 %
  • Lift Time: 45 sec.
  • Lower Time: 49 sec.
  • Platform Capacity: 1500 lb / 680.39 kg
  • Platform Capacity - Extension: 1250 lb / 566.99 kg
  • Turning Radius - Inside: 8 ft 11 in. / 2.71 m
  • Turning Radius - Outside: 19 ft 6 in. / 5.93 m

Dimensional Data

  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Height - Rails Folded: 6 ft 10 in. / 2.08 m
  • Machine Length: 12 ft 10 in. / 3.91 m
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Platform Dimension A: 5 ft 11 in. / 1.79 m
  • Platform Dimension B: 12 ft 6 in. / 3.8 m
  • Platform Extension Length: 4 ft / 1.22 m
  • Platform Height - Lowered: 6 ft 1 in. / 1.84 m
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Tire Size: 33 x 15.5 Superwide
  • Wheelbase: 9 ft 9 in. / 2.97 m

Reach Specifications

  • Platform Height: 43 ft / 13.11 m
  • Working Height: 49 ft / 14.94 m

Additional information

Fuel Type

Size

Features

  • Enhanced Stability on Uneven Surfaces – Standard oscillating axle gives you better traction and grade climbing ability
  • Smoother Extension Deployment – Platform is designed to shed debris and allows for smoother extension deployment
  • Better Serviceability – Fully accessible hydraulic and engine compartments are easier to service
  • The RT4394 is the new model designation of the previous 430LRT model
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
