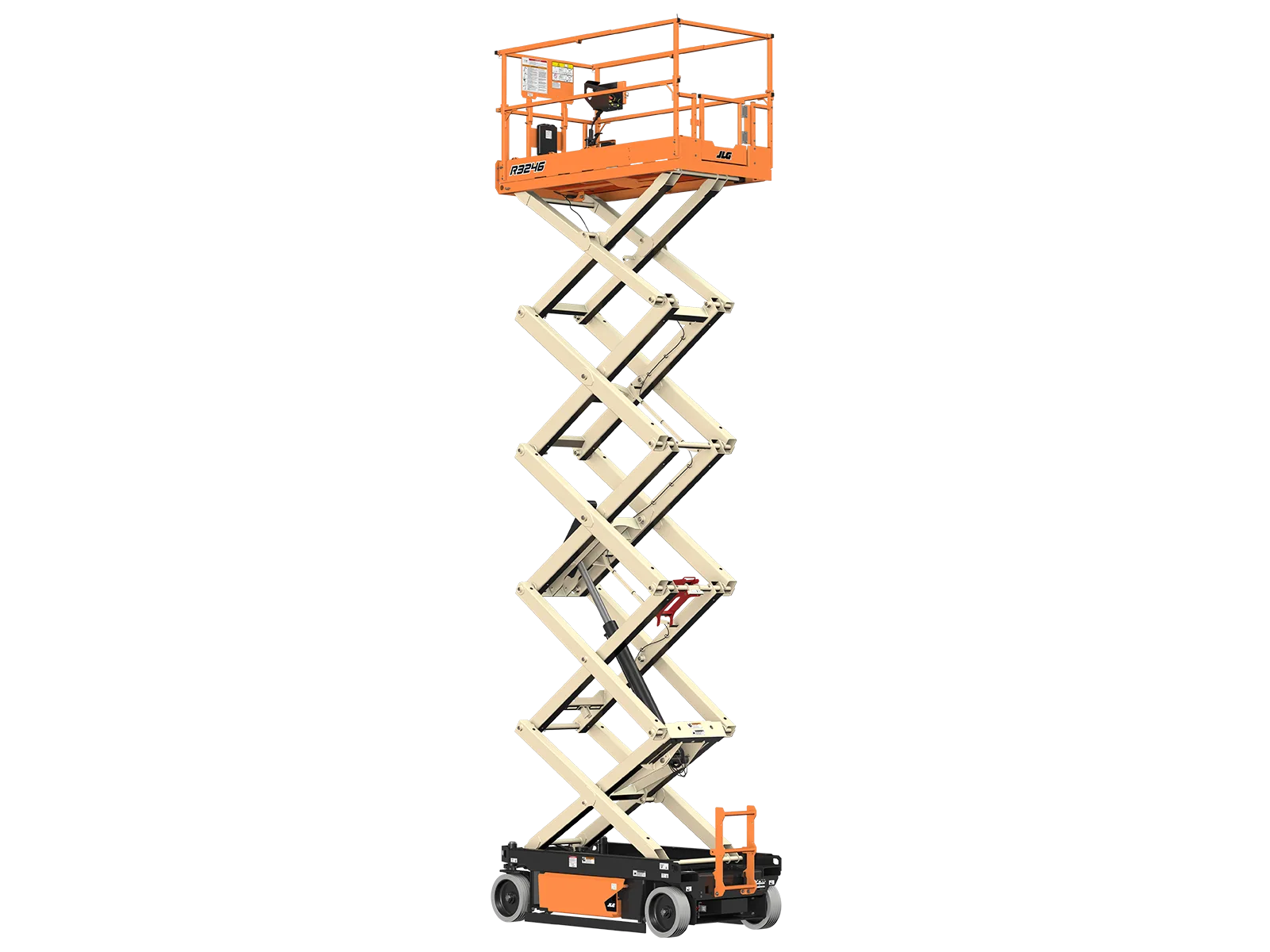

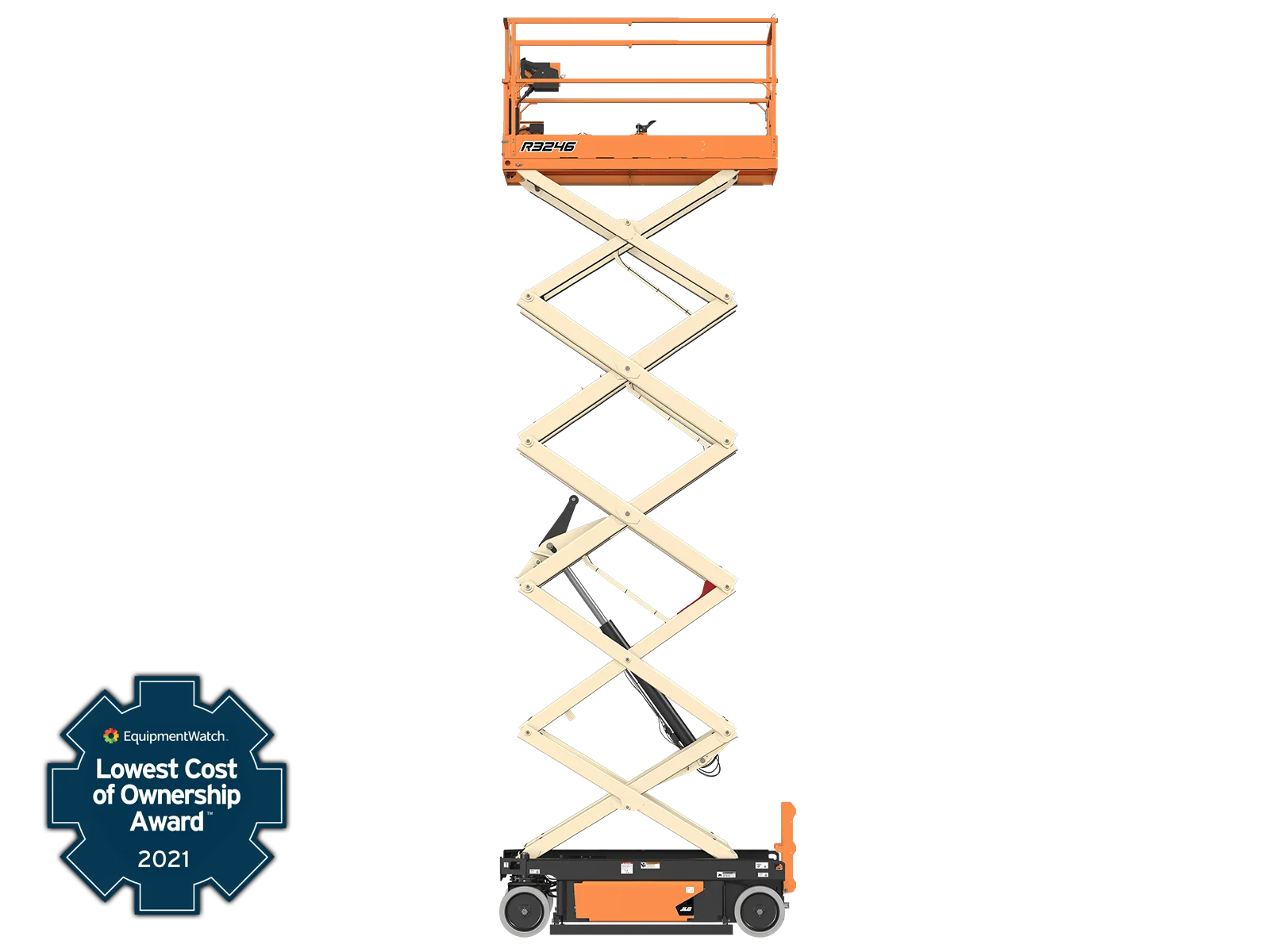

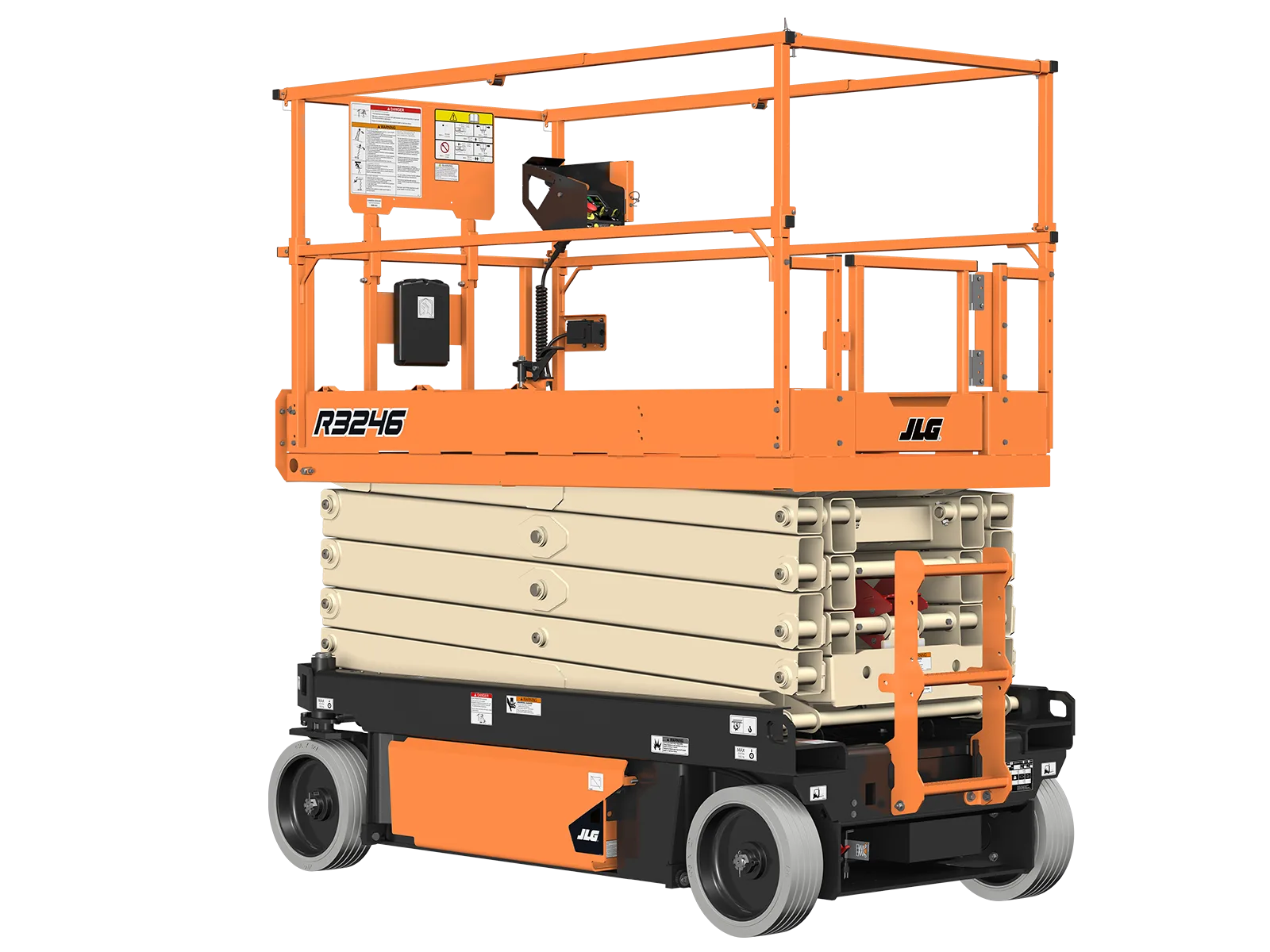

Scissor Lift 32’ 46”

Power Source

• Batteries: 4 x 6V 220 A-h
• Charger: 27 amp High Frequency Charger

General

• Brakes: Multi-disc Friction
• Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
• Hydraulic Pump: Fixed Displacement Gear
• Machine Weight: 5410 lb / 2453.93 kg
• Maximum Ground Bearing Pressure: 131 psi / 9.17 Kg/cm2

Performance

• Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
• Drive Speed - Platform Lowered: 2.5 mph / 4.02 km/h
• Drive System: Hydraulic Front-Wheel
• Gradeability: 25 %
• Lift Time: 54 sec.
• Lower Time: 41 sec.
• Maximum Drive Height: 32 ft / 9.75 m
• Maximum Drive Height (Indoor): 32 ft / 9.75 m
• Elevated Drive Height Outdoor: 32 ft / 9.75 m
• Platform Capacity: 705 lb / 319.78 kg
• Platform Capacity - Extension: 265 lb / 120.20 kg
• Platform Capacity - Indoor: 705 lb / 319.78 kg
• Platform Capacity - Outdoor: 507 lb / 229.97 kg
• Turning Radius - Inside: 0 in. / 0 m
• Turning Radius - Outside: 7 ft 9 in. / 2.37 m

Dimensional Data

• Ground Clearance: 4 in. / 0.1 m
• Machine Height: 8 ft / 2.45 m
• Machine Height - Rails Folded: 6 ft 6 in. / 1.97 m
• Machine Length: 7 ft 10 in. / 2.4 m
• Machine Width: 3 ft 10 in. / 1.17 m

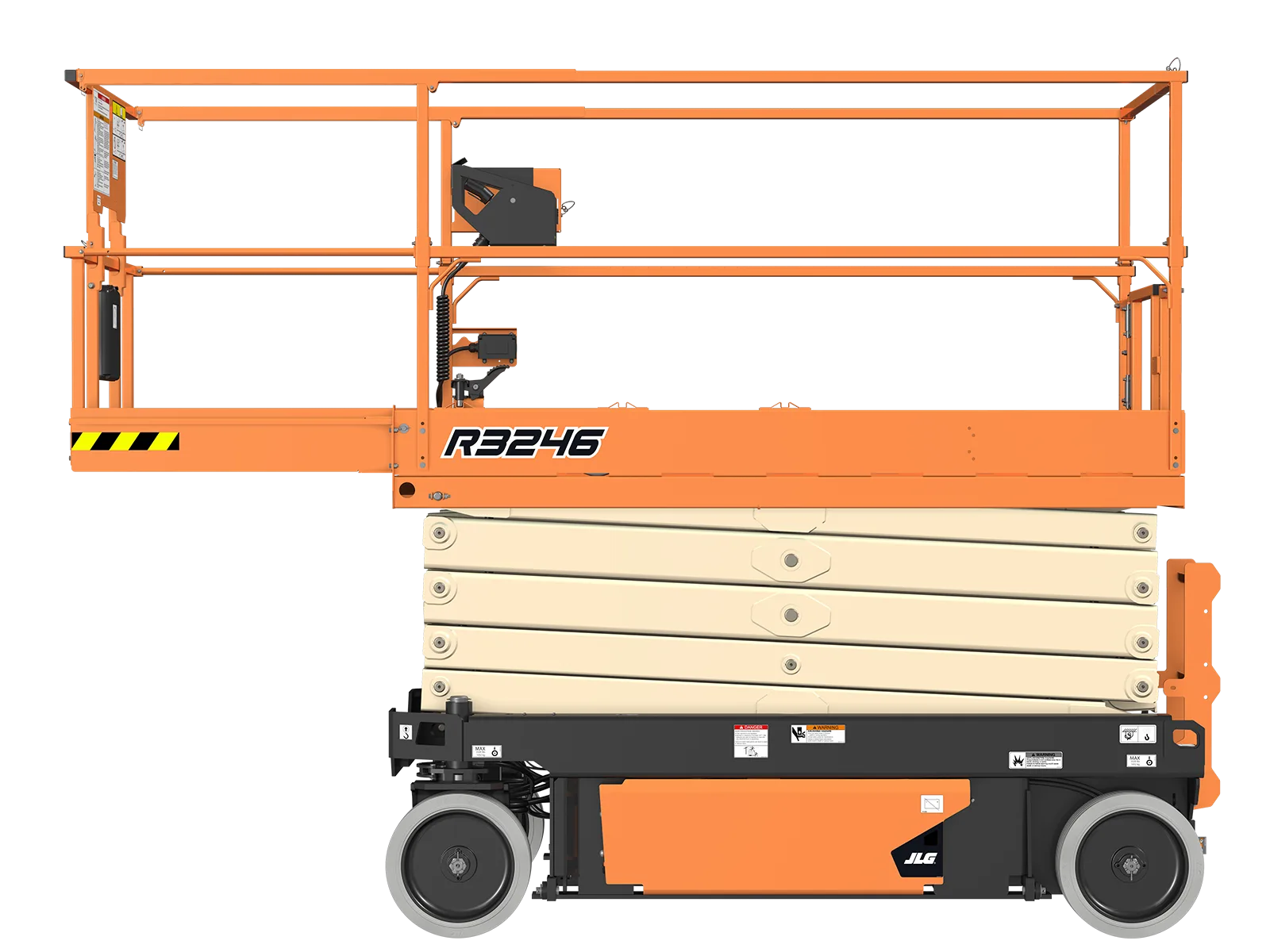

• Platform Extension Length: 3 ft / 0.91 m
• Platform Height - Lowered: 4 ft 3 in. / 1.29 m
• Platform Railing Height: 3 ft 8 in. / 1.11 m
• Platform Size: 41.6 x 84 in
• Tire Size: 16 x 5 in Non-Marking
• Wheelbase: 6 ft 2 in. / 1.88 m

Reach Specifications

• Platform Height: 32 ft / 9.75 m
• Platform Height (Indoor): 32 ft / 9.75 m
• Platform Height (Outdoor): 32 ft / 9.75 m
• Working Height: 38 ft / 11.58 m
