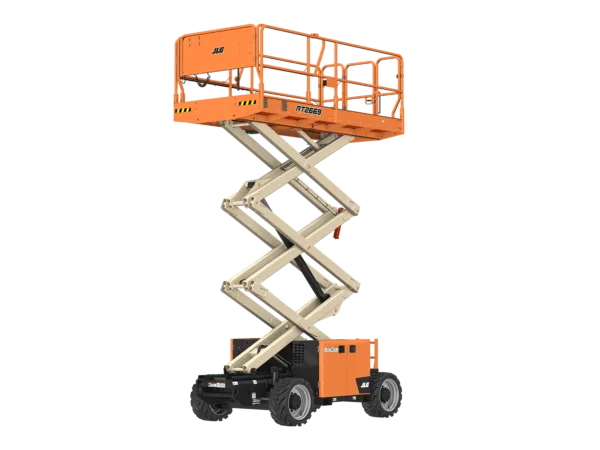

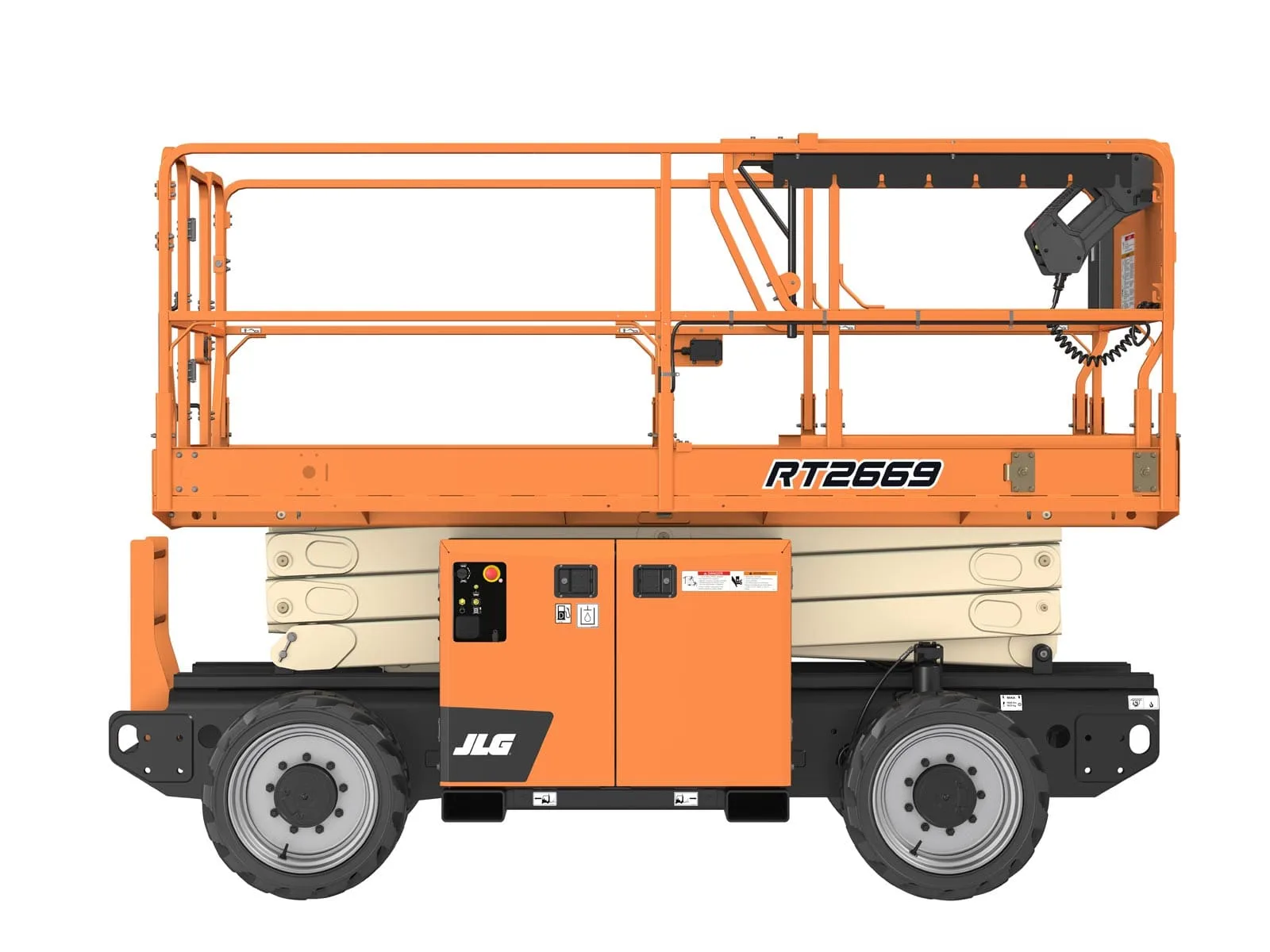

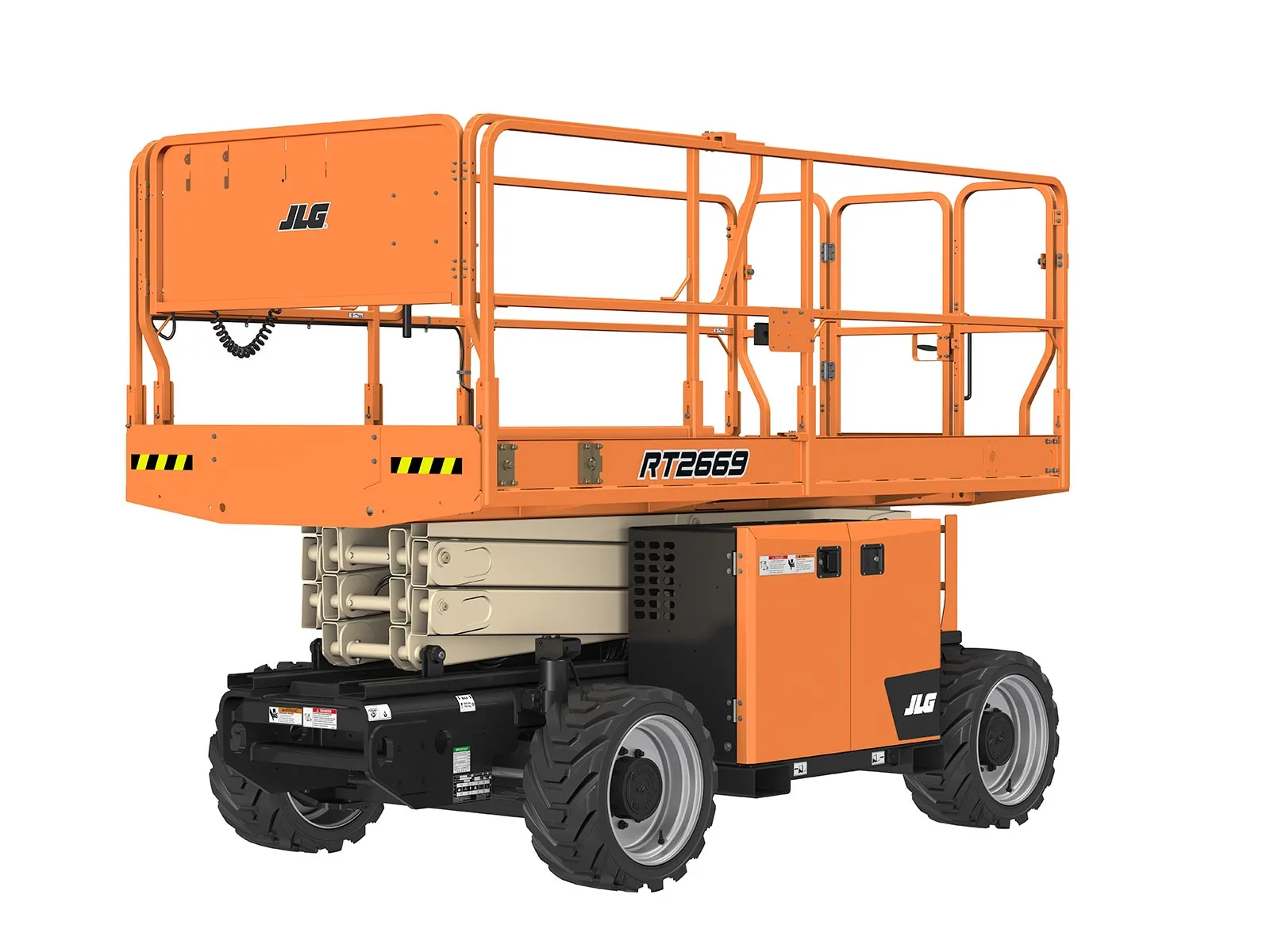

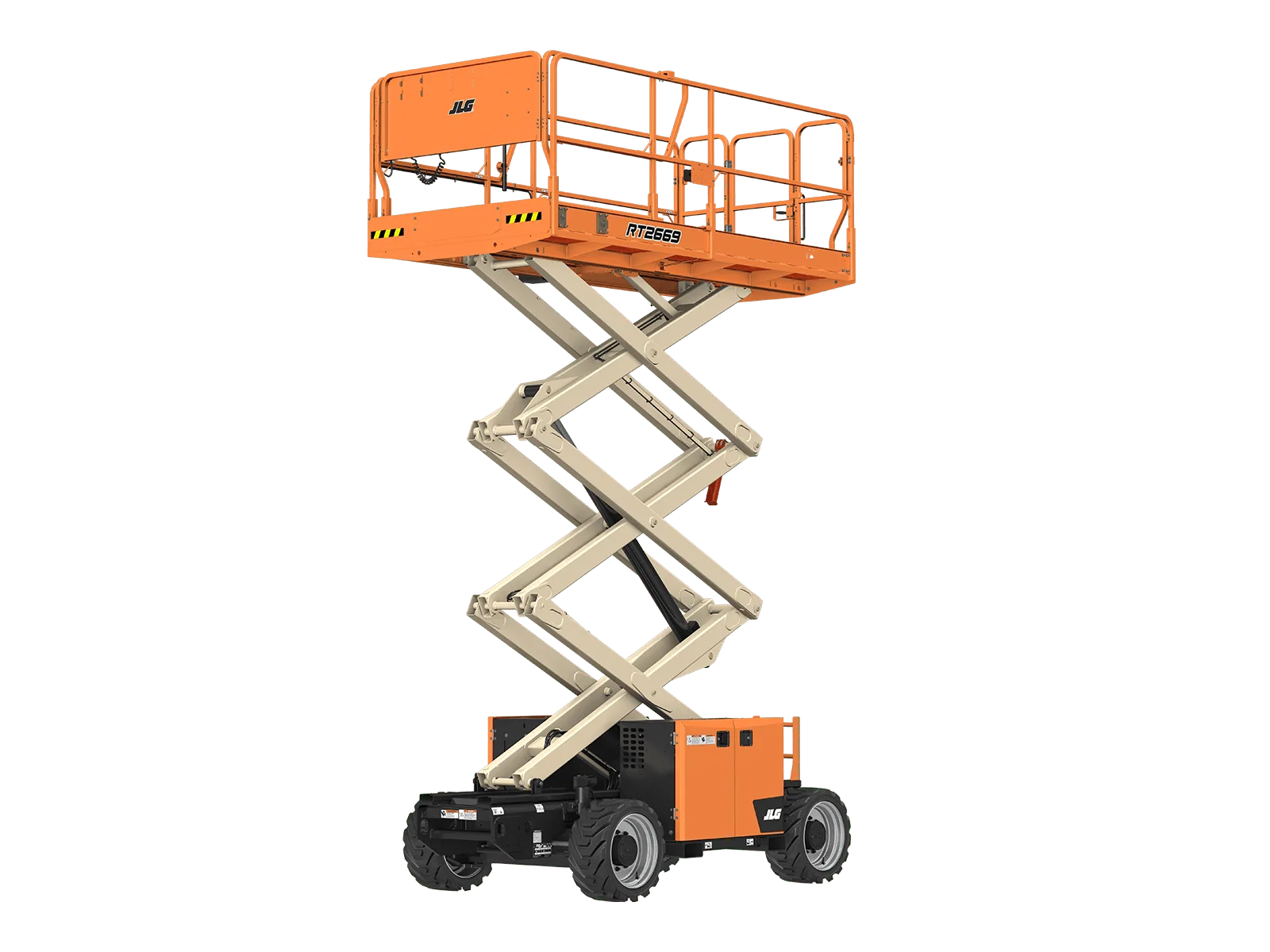

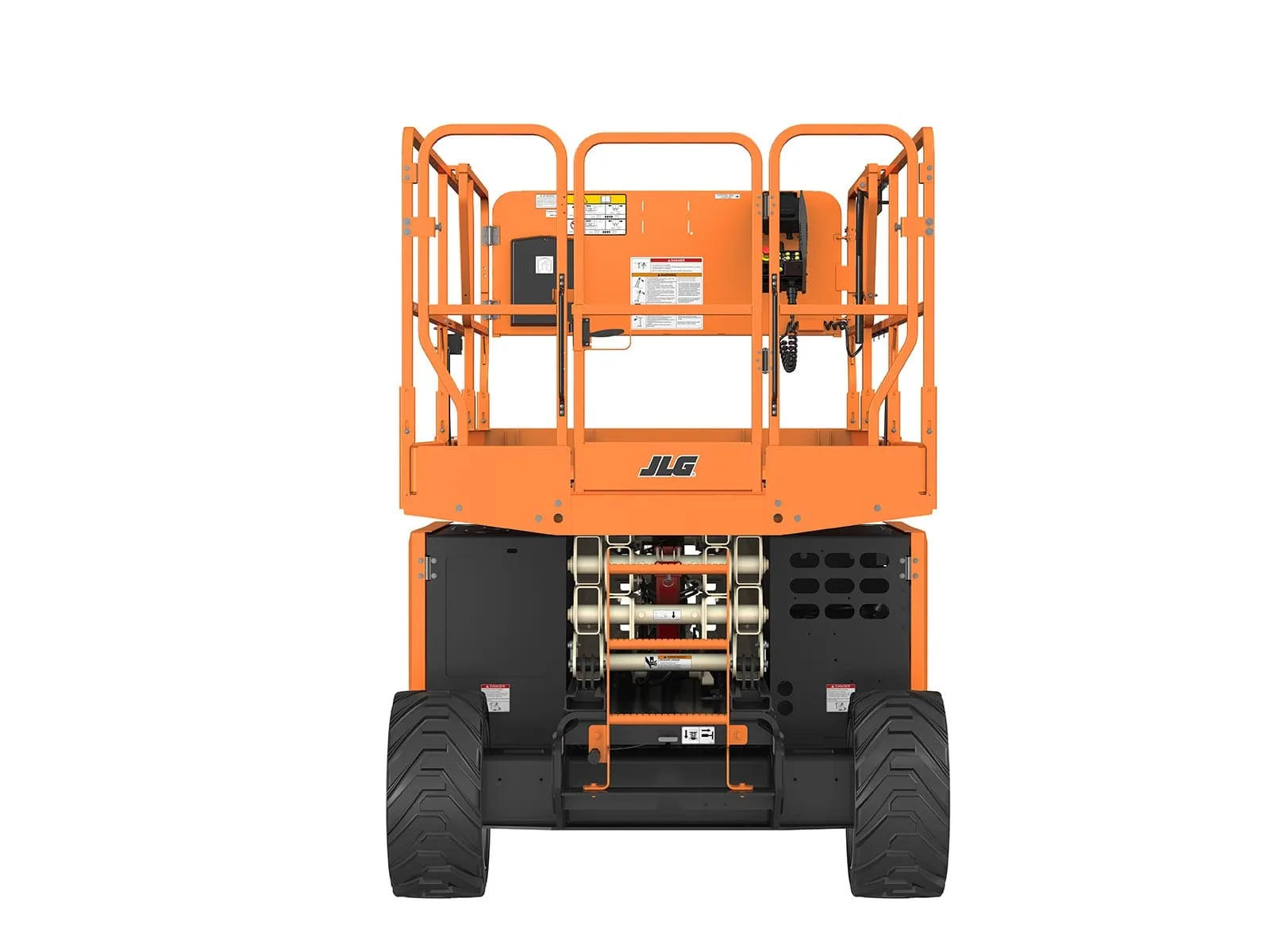

Scissor Lift 26’ 69” RT

Key Specs

  • Platform Height: 26 ft 2 in. / 7.98 m
  • Platform Capacity: 1500 lb / 680.39 kg
  • Machine Width: 5 ft 9 in. / 1.76 m
  • Drive Speed – Platform Lowered: 3.5 mph / 5.63 km/h

Key Features

  • Limit Trips Up and Down: Engine powered rough terrain models offer drive capability at full height
  • Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
  • Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator

Power Source

  • Engine Model: Kubota D1305-E4B-J
  • Engine Type - Diesel: 24.8 hp (18.5 kW)
  • Engine Type - Dual Fuel: Kubota WG972-GL-E4 (31 hp / 23.2 kW)
  • Fuel Tank Capacity - Diesel: 10 gal. / 37.85 L

General

  • Capacity - Hydraulic Reservoir: 13.2 gal. / 49.97 L
  • Machine Weight: 8250 lb / 3742.14 kg

Performance

  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
  • Gradeability - 2WD: 40 %
  • Lift Time: 32 sec.
  • Lower Time: 37 sec.
  • Platform Capacity: 1500 lb / 680.39 kg
  • Platform Capacity - Extension: 300 lb / 136.08 kg
  • Turning Radius - Outside: 14 ft 7 in. / 4.44 m

Dimensional Data

  • Machine Height: 8 ft 1 in. / 2.46 m
  • Machine Length: 11 ft 7 in. / 3.53 m
  • Machine Width: 5 ft 9 in. / 1.76 m
  • Platform Dimension A: 10 ft 6 in. / 3.2 m
  • Platform Dimension B: 4 ft 9 in. / 1.45 m
  • Platform Extension Length: 3 ft 6 in. / 1.07 m
  • Platform Height - Lowered: 4 ft 3 in. / 1.3 m
  • Platform Railing Height: 3 ft 9 in. / 1.14 m
  • Tire Size: 26 x 12 Foam Filled
  • Wheelbase: 6 ft 9 in. / 2.07 m

Reach Specifications

  • Platform Height: 26 ft 2 in. / 7.98 m
  • Working Height: 32 ft / 9.75 m

Additional information

Fuel Type

Size

Features

  • Limit Trips Up and Down: Engine powered rough terrain models offer drive capability at full height
  • Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
  • Use the Latest Technology: An LCD platform control box with LiftSense technology and USB charging delivers next-level, real-time productivity and service communication to the operator
  • Reduce Maintenance Needs: Higher parts commonality for simpler service across rough terrain family, while meeting specific customers’ needs with standard 4WD or optional 2WD
  • Stay in Compliance: This ANSI A92.20 compliant lift features a load sensing system and the ability to calibrate the system without weight
  • Choose Innovative Options: Optional QuikLevel Advanced system allows machine to level on a side slope, helping operators position—and drive while elevated—closer to the job
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
