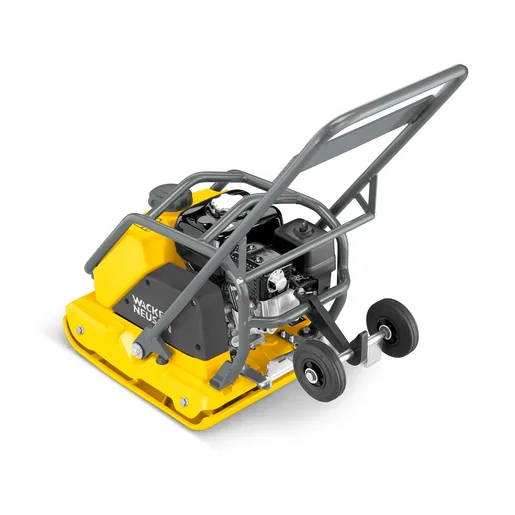

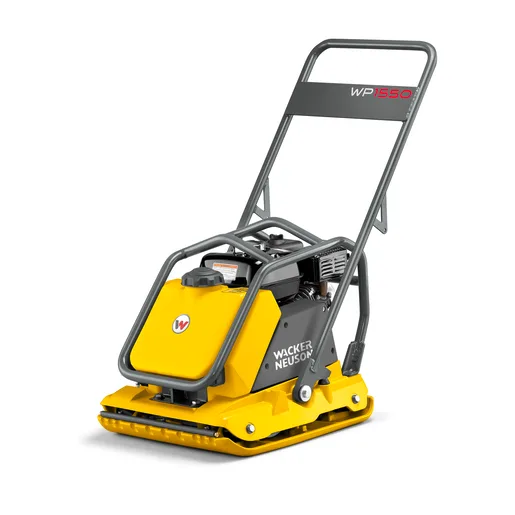

Plate Compactor 200lb 20”
Material number: 5100018324
Single direction vibratory plate with water tank for soil compaction
- Low-maintenance design for low TCO
- Sturdy protective frame for engine and water tank
- Optimally shaped base plate
The 200 lb Plate Compactor (20") is a powerful single-direction vibratory plate designed to deliver reliable soil and asphalt compaction for construction, landscaping, paving, and repair projects. Featuring a 20-inch compaction plate and an integrated water tank, this machine is ideal for creating stable, long-lasting surfaces while reducing material buildup during asphalt applications.
Built for professional performance, the 200 lb Plate Compactor provides consistent compaction on granular soils, sand, gravel, and asphalt. Its compact design makes it easy to maneuver in confined areas, making it an excellent choice for sidewalks, driveways, patios, walkways, trenches, and other projects where larger compaction equipment is impractical.
Key Specifications
- Operating Weight: 200 lbs
- Plate Width: 20 in
- Single-Direction Vibratory Plate
- Integrated Water Tank for Asphalt Compaction
- Ideal for Soil, Gravel, Sand, and Asphalt
- Compact, Easy-to-Maneuver Design
Common Applications
The 200 lb Plate Compactor is ideal for compacting soil, gravel, sand, crushed stone, asphalt patches, paver bases, and backfill. It is commonly used for foundation preparation, landscaping projects, road repairs, sidewalk installation, trench compaction, patios, driveways, and other residential and commercial construction applications.
The integrated water tank helps prevent asphalt from sticking to the plate during paving work, while the vibratory action creates a dense, stable surface that improves the durability and longevity of finished projects. Whether you're preparing a base for pavers or compacting soil before construction, this plate compactor delivers dependable performance and efficient results.
Rent the 200 lb Plate Compactor (20") from LTC Rentals for dependable equipment, flexible rental options, and expert support to help keep your project on schedule.
Technical Data
OPERATING FLUIDS (Metric)
- Exciter oil volume: 0.15 l
- Exciter oil type: 75W-90 API GL-4
ENGINE (Metric)
- Fuel management: Carburettor
- Inclined position max.: 20.0 °
- Engine operating mode: Four-stroke
- Operating Engine speed: 3,520 1/min
- Fuel consumption: 0.80 L/Std
- Standard (Power max.): SAE J1349
- Standard (Effective power): ISO 3046 IFN
- Tank capacity: 3.60 l
- Nominal Engine speed: 3,600 1/min
- Oil filling max.: 0.60 l
- Effective power: 3.1 kW, 3.6 kW
- Battery capacity (nom. value): 0 Ah
- Air cleaner: Cyclone air filter
- Power rating max.: 3.6 kW
- Cooling: Air cooling
- Exhaust-gas limit: EPA4/08
- Oil specification: SAE 10W-30
- Starter battery Voltage: 0 V
- Engine speed (Power max.): 3,600 1/min
- Starter type: Recoil starter
- Operating power: 2.9 kW
- Oil filling min.: 0.60 l
- Engine type: Gasoline engine
- Cylinder: 1
- Engine Manufacturer: Honda
- Standard (Operating power): ISO 3046 IFN
- Cylinder capacity: 163 cm³
- Spark plug(s): NGK BP-6 ES
- Fuel type: Gasoline
- Oil volume incl. filter change: 0.60 l
MECHANICAL – OUTPUT DETAILS (Metric)
- Vibrations: 5.880 1/min
- Forward running: 29.00 m/min
- Transmission: FKK-KR
- Gradeability: 36.4 %
- Centrifugal force: 15,000 kN
- Vibrations (Hz): 98.0 Hz
- Area capacity: 870 m²/h
ELECTRICAL SYSTEM (Metric)
- Electrode distance: 0.70 – 0.80 mm
ENVIRONMENT DATA (Metric)
- Operating temperature range: -15 – 40 °C
- Sound level LpA (Standard): EN 500-4
- Sound power LWA, guaranteed: 108.0 dB(A)
- Storage temperature range: -15 – 40 °C
- HAV summation (average value): 5.3 m/s²
- Uncertainty in measurement HAV: 0.5 m/s²
- HAV summation (Standard): EN 500-4
- Sound level LpA: 94.0 dB(A)
- Sound power LWA (Standard): EN 500-4, 2000/14/EG
- Sound power LWA, measured: 107.0 dB(A)
MECHANICAL DETAILS (Metric)
- Length Drawbar in op. pos.: 877 mm
- Operating weight: 96.0 kg
- Ground clearance: 527 mm
- Height: 963 mm
- Width: 498 mm
CUSTOM ATTRIBUTES (Metric)
- Model serie: WP
