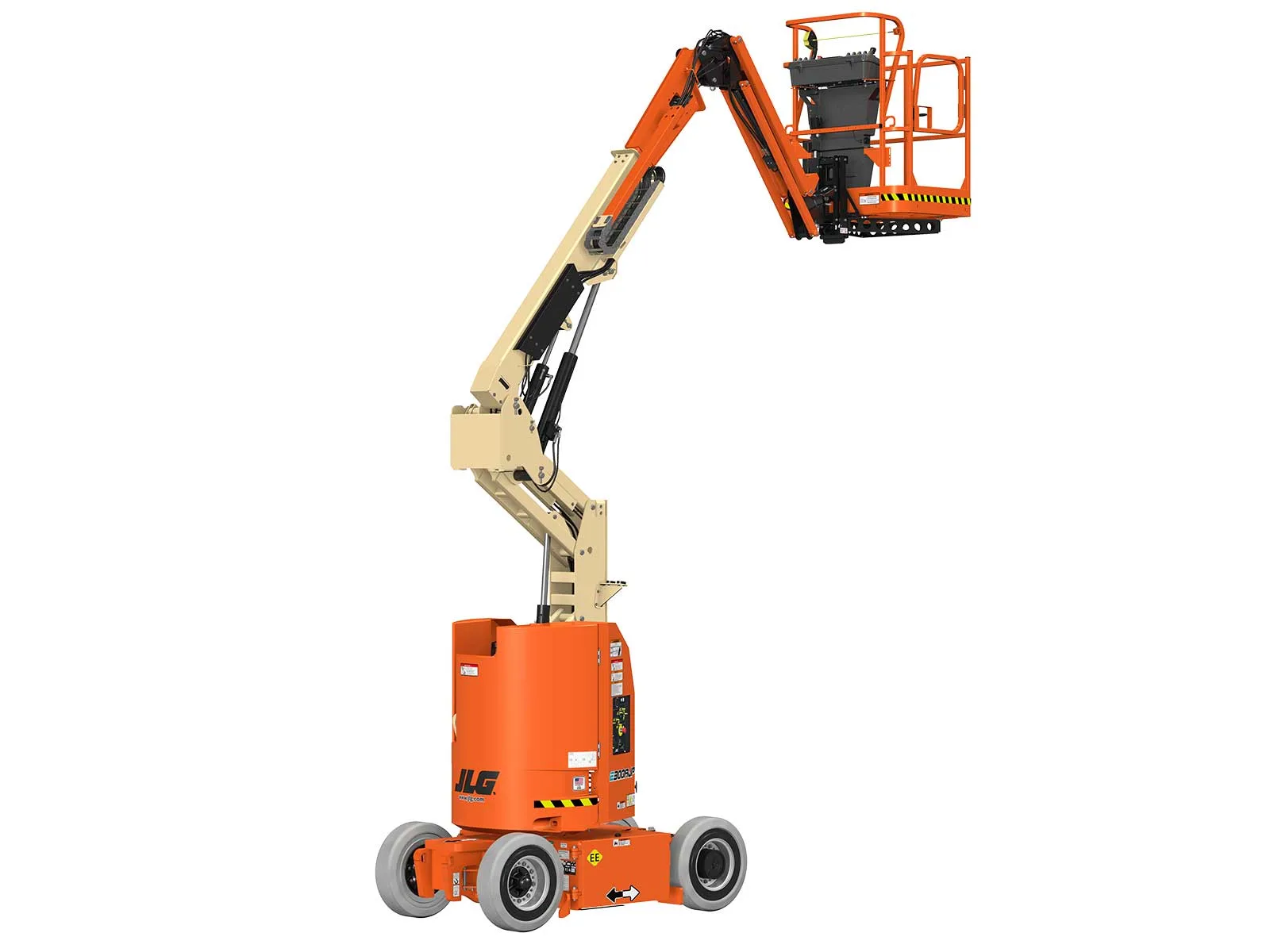

30’ Electric Articulating Boom Lift
Key Specs
- Platform Height: 29 ft 5 in. / 8.97 m
- Machine Width: 4 ft / 1.22 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
Key Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Power Source
- Batteries: 8 x 6V, 305 A-h
- Electrical System: 48 Volts DC
Performance
- Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
- Gradeability - 2WD: 25%
- Platform Capacity: 500 lb / 226.80 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Swing: 350 Degrees
- Swing Type: Non-Continuous
- Turning Radius - Outside: 10 ft 2 in. / 3.1 m
- Jib - Range of Articulation: 144 Degrees
Dimensional Data
- Ground Clearance: 4 in. / 0.1 m
- Machine Height: 6 ft 7 in. / 2.01 m
- Machine Length: 18 ft 10 in. / 5.74 m
- Machine Width: 4 ft / 1.22 m
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 4 ft / 1.22 m
- Tailswing: 0 in. / 0 m
- Tire Size: 25 x 7 x 12 Non-marking
- Wheelbase: 5 ft 5 in. / 1.65 m
Reach Specifications
- Horizontal Jib Rotation: 180 Degrees
- Horizontal Outreach: 20 ft 1 in. / 6.12 m
- Platform Height: 29 ft 5 in. / 8.97 m
- Up and Over Height: 13 ft 2 in. / 4.01 m
General
- Capacity - Hydraulic Reservoir: 2.1 gal. / 7.95 L
- Machine Weight: 15,705 lb / 7,123.67 kg
Features
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – longer with longer duty cycles
- Environmentally friendly – zero emissions
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
